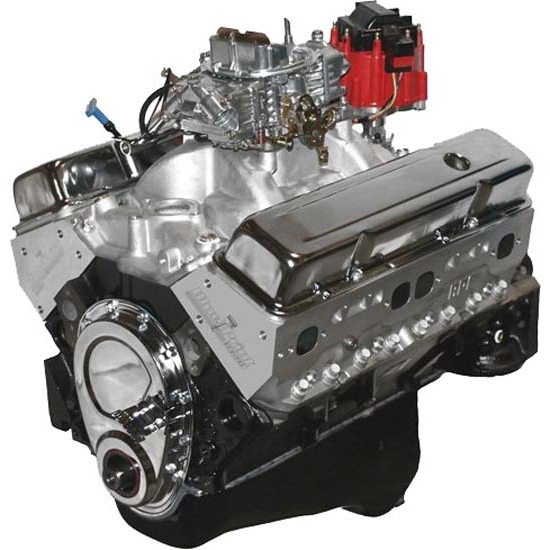

BluePrint BP38313CTC1 GM 383 Dressed Engine, Alum Heads, Roller Cam
BluePrint BP38313CTC1 GM 383 Dressed Engine, Alum Heads, Roller Cam

BluePrint BP38313CTC1 GM 383 Dressed Engine, Alum Heads, Roller Cam

350 Chevy Small Block V8, 383 Chevy Small Block V8, Long Block Crate Engine Type

0 Reviews | 8 Answered Questions
On Backorder
Flat Rate Shipping
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
BluePrint BP38313CTC1 GM 383 Dressed Engine, Alum Heads, Roller Cam
BluePrint BP38313CTC1 GM 383 Dressed Engine, Alum Heads, Roller Cam
BluePrint BP38313CTC1 GM 383 Dressed Engine, Alum Heads, Roller Cam
X
BluePrint BP38313CTC1 GM 383 Dressed Engine, Alum Heads, Roller Cam
Zoomed In Image
BluePrint Engines estimates this item will ship on or before July 1st.
Part # 227BP38313CTC1
$5,199.00
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Features aluminum heads and a cast steel crank
  • Has a 10:1 compression ratio and a 4 bolt main
  • Pistons feature a hypereutectic aluminum construction
  • Produces an astonishing 430 horsepower and 450 lb. ft. of torque
  • It is carefully dyno tested and ships with printed, proven results

Details

Crate Engine Type:
Long Block
Engine Displacement:
383 cu. in.
Horsepower:
430 horsepower
Compression Ratio:
10.0:1
Torque:
450 ft./lbs.
Camshaft Type:
Hydraulic Roller Tappet
Cylinder Head Material:
Aluminum
Piston Material:
Hypereutectic Aluminum
Crankshaft Material:
Cast Steel
Camshaft Duration (.050 in):
221° intake / 226° exhaust
Camshaft Lift (in):
.528 intake / .536 exhaust
Bore x Stroke (in):
4.000" bored .040" over x 3.750"
Intake Manifold Included:
Yes
Distributor Included:
Yes
Warranty:
30 month / 50,000 miles
Valve Covers Included:
Yes
Assembled:
Yes
Cylinder Heads Included:
Yes
Rear Main Seal Style:
1-piece
Oil Pan Included:
Yes
Timing Cover Included:
Yes
Water Pump Included:
No
Harmonic Balancer Included:
No
Flexplate Included:
No
Flywheel Included:
No
Air Cleaner Included:
No
Spark Plugs Included:
No
Spark Plug Wires Included:
No
Camshaft Included:
Yes
Block:
Hand picked, seasoned, square and parallel decked, 4 bolt main
MFG. Part #:
BP38313CTC1
Notes:
Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR

Info

True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

GM 383 Dressed Engine - Aluminum Heads - Roller Cam

Overview

  • HP & Torque: 430 HP / 450 FT LBS
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Roller Cam
  • Cast Steel Crank
  • Part #: BP38313CTC1

Block

  • 4 bolt main
  • 1pc rear seal block w/Passenger side dipstick only
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  • Cylinders are sonic tested for thickness

Rotating Assembly

  • New cast steel crankshaft
  • Hypereutetic pistons
  • Chevy heavy beam rods with 150,000 psi bolts
  • Hastings Moly rings
  • Balanced rotating assembly
  • Melling high volume oil pump
  • Roller camshaft heavy-duty timing set

Cylinder Heads

  • BluePrint Performance aluminum
  • Hardened retainers and springs
  • 2.02 swirl polished intake valves
  • 1.60 swirl polished exhaust valves
  • BP Aluminum Head Part# H8002K

Cam Specs

  • Cam Type: Roller
  • .528 Intake
  • .536 Exhaust
  • 221 Intake / 226 Exhaust duration
  • @.050 - 110 degree lobe separation

Ignition Timing

  • 34 degrees at 3500 RPM

Also Includes

  • Valve covers, oil pan and timing cover
  • Aluminum Intake Manifold
  • HEI distributor
  • 750cfm Carburetor
  • Brass freeze plugs
  • Dyno tested “ and shipped with results

Warranty

  • 30 month / 50,000 mile

Notes

  • Not for use in pollution controlled vehicles.
    This engine uses an externally balanced harmonic balancer.  We recommend using an 8" balancer.
    The flexplate / flywheel that we recommend is a late 350 Weighted (1 pc Rear Main Seal, Externally balanced)
    Recommended Stall Converter: 2000 to 2400 RPM.
    Recommended Spark Plug: BPP7938 NGK 7938 BKR5E
  • The Aftermarket intake manifold installed on this engine may not be compatible with OEM accessory brackets that use intake mounted bosses.
