$5,399.00

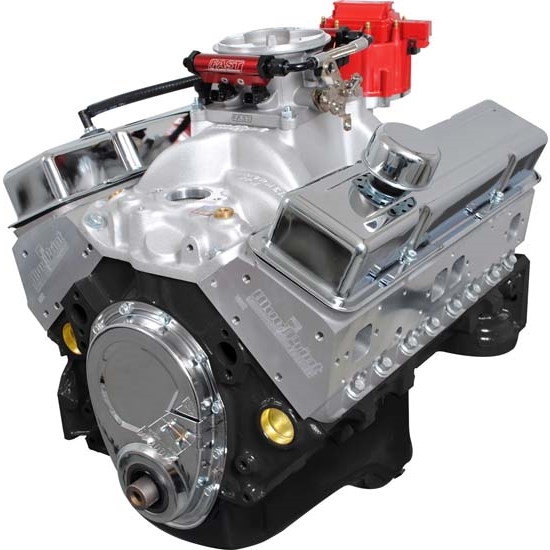

BluePrint BP35513CTF1 GM 355 Base Engine, Alum Heads, Roller Cam

BluePrint BP35513CTF1 GM 355 Base Engine, Alum Heads, Roller Cam
350 Chevy Small Block V8, Long Block Crate Engine Type, 355 cu. in. Engine Displacement
Factory Shipped
Flat Rate Shipping
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Details
Crate Engine Type:
Long Block
Engine Displacement:
355 cu. in.
Horsepower:
390 horsepower
Compression Ratio:
10.0:1
Torque:
410 ft./lbs.
Camshaft Type:
Hydraulic Roller Tappet
Cylinder Head Material:
Aluminum
Piston Material:
Hypereutectic Aluminum
Crankshaft Material:
Cast Steel
Camshaft Duration (.050 in):
220° intake / 224° exhaust
Camshaft Lift (in):
.495 intake / .503 exhaust
Bore x Stroke (in):
4.000" bored .040 over x 3.480"
Intake Manifold Included:
Yes
Distributor Included:
Yes
Warranty:
30 month / 50,000 miles
Valve Covers Included:
Yes
Assembled:
Yes
Cylinder Heads Included:
Yes
Rear Main Seal Style:
1-piece
Oil Pan Included:
Yes
Timing Cover Included:
Yes
Water Pump Included:
No
Harmonic Balancer Included:
No
Flexplate Included:
No
Flywheel Included:
No
Air Cleaner Included:
No
Spark Plugs Included:
No
Spark Plug Wires Included:
No
Camshaft Included:
Yes
Block:
Hand picked, seasoned, square and parallel decked, 4 bolt main
MFG. Part #:
BP35513CTF1
Notes:
Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR
Info
True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!
GM 355 Base Engine - Aluminum Heads - Roller Cam
Overview
- HP & Torque: 390 HP / 410 FT LBS
- Compression Ratio: 10.1:1
- Aluminum Heads
- Hypereutectic Pistons
- Roller Cam
- Cast Steel Crank
- Part #: BP35513CTF1
Block
- 4-bolt main, 1-piece rear main seal
- Passenger side dipstick
- Align honed main bearing bore
- Cylinders honed on computer controlled machine to within .0002 straightness and roundness
- Cylinders are sonic tested for thickness
Rotating Assembly
- BluePrint premium cast steel crankshaft
- Hypereutectic pistons
- Chevy heavy beam rods with 150,000 PSI bolts
- Hastings moly rings
- Melling high volume oil pump
- Hydraulic roller cam
- Heavy duty double roller timing set
Cylinder Heads
- BluePrint Performance aluminium
- Hardened retainers and springs
- 2.02 swirl polished intake valves
- 1.60 swirl polished exhaust valves
- BP Aluminum Head Part# H8002K
Cam Specs
- Cam Type: Roller
- .495 Intake .503 Exhaust
- 220 Intake / 224 Exhaust duration
- @ .050 - 112 degree lobe separation
Ignition Timing
- 34 degrees at 3500 RPM
Also Includes
- New valve covers
- Oil pan
- Timing cover
- Aluminum intake
- HEI distributor
- FAST EZ-EFI injection system
- Brass freeze plugs
- Dyno test results shipped with engine
Notes
Not for use in pollution controlled vehicles.
Warranties
Warranty Information (PDF)
Important Messages
- This item ships directly from the manufacturer. It may take an additional 90 business days for BluePrint Engines to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
