BluePrint BP35513CTC1 GM 355 Dressed Engine, Alum Heads, Roller Cam

#227BP35513CTC1

BluePrint BP35513CTC1 GM 355 Dressed Engine, Alum Heads, Roller Cam

Name: BluePrint BP35513CTC1 GM 355 Dressed Engine, Alum Heads, Roller Cam
Brand: BluePrint Engines
SKU: 227BP35513CTC1
Price: 4789 USD
Availability: Discontinued

BluePrint Engines

Write a Review

4 Questions

It has a compression ratio of 10.1:1
Includes a roller cam and a forged crank
Features aluminum heads and hypereutectic pistons

$4,789.00

each

Discontinued

This item is currently not available

Shop all BluePrint GM Crate Engines

Product Summary

350, Long Block Crate Engine Type, 410 ft./lbs. Torque

It has a compression ratio of 10.1:1
Includes a roller cam and a forged crank
Features aluminum heads and hypereutectic pistons
Block is a 4-bolt main with a 1-piece rear main seal
This engine produces 390 horsepower and 410 ft. lb. of torque

See more details

Key Specs

Crate Engine Type	Long Block
Engine Displacement	355 cu. in.
Horsepower	390 horsepower
Compression Ratio	10.0:1
Torque	410 ft./lbs.

See more specs

Need To Know

Truck Ship

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

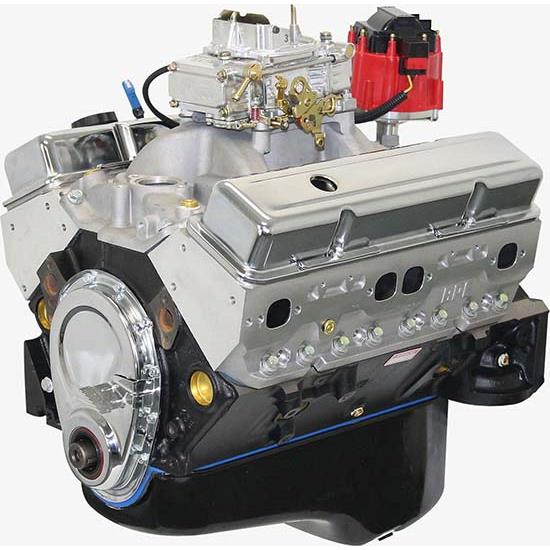

GM 355 Dressed Engine - Aluminum Heads - Roller Cam

Overview

HP & Torque: 390 HP / 410 FT LBS
Compression Ratio: 10.1:1
Aluminum Heads
Hypereutectic Pistons
Roller Cam
Cast Steel Crank
Part #: BP35513CTC1

Block

4-bolt main, 1-piece rear main seal
Passenger side dipstick
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness

Rotating Assembly

BluePrint premium cast steel crankshaft
Hypereutectic pistons
Chevy heavy beam rods with 150,000 PSI bolts
Hastings moly rings
Melling high volume oil pump
Hydraulic roller cam
Heavy duty double roller timing set

Cylinder Heads

BluePrint Performance aluminium
Hardened retainers and springs
2.02 swirl polished intake valves
1.60 swirl polished exhaust valves
BP Aluminum Head Part# H8002K

Cam Specs

Cam Type: Roller
.495 Intake .503 Exhaust
220 Intake / 224 Exhaust duration
@ .050 - 112 degree lobe separation

Ignition Timing

34 degrees at 3500 RPM

Also Includes

New valve covers
Oil pan
Timing cover
Aluminum intake
HEI distributor
600 cfm carburetor
Brass freeze plugs
Dyno test results shipped with engine

Notes

Not for use in pollution controlled vehicles.

Charts

Warranty Information (PDF)

Warranties

Warranty Information (PDF)

Guides & Documents

Crate Engines Guide/Document (227BP35513CTC1)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA Prop 65

CARB warning

Specifications

KEY SPECS
MFG. Part #	BP35513CTC1
Brand	BluePrint Engines
Crate Engine Type	Long Block
Engine Displacement	355 cu. in.
Horsepower	390 horsepower
Compression Ratio	10.0:1
Torque	410 ft./lbs.
Camshaft Type	Hydraulic Roller Tappet
Cylinder Head Material	Aluminum
Piston Material	Hypereutectic Aluminum
Crankshaft Material	Cast Steel
Camshaft Duration (.050 in)	220° intake / 224° exhaust
Camshaft Lift (in)	.495 intake / .503 exhaust
Bore x Stroke (in)	4.000" bored .040 over x 3.480"
Carburetor Included	Yes
Intake Manifold Included	Yes
Distributor Included	Yes
Valve Covers Included	Yes
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Oil Pan Included	Yes
Timing Cover Included	Yes
Water Pump Included	No
Harmonic Balancer Included	No
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	No
Spark Plug Wires Included	No

GENERAL
Warranty	30 month / 50,000 miles
Assembled	Yes
Camshaft Included	Yes
Block	Hand picked, seasoned, square and parallel decked, 4 bolt main
Notes	Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR
