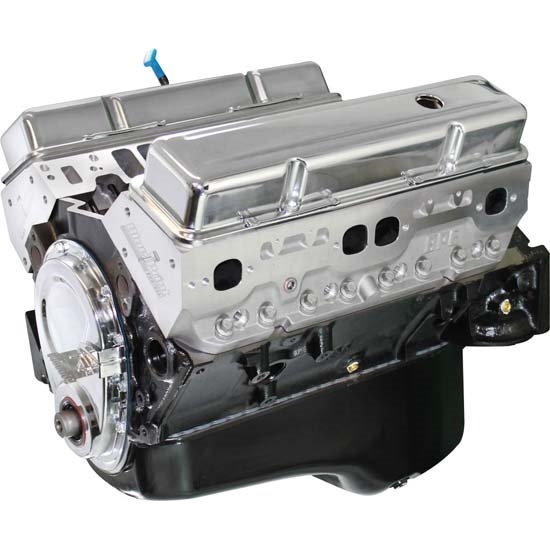

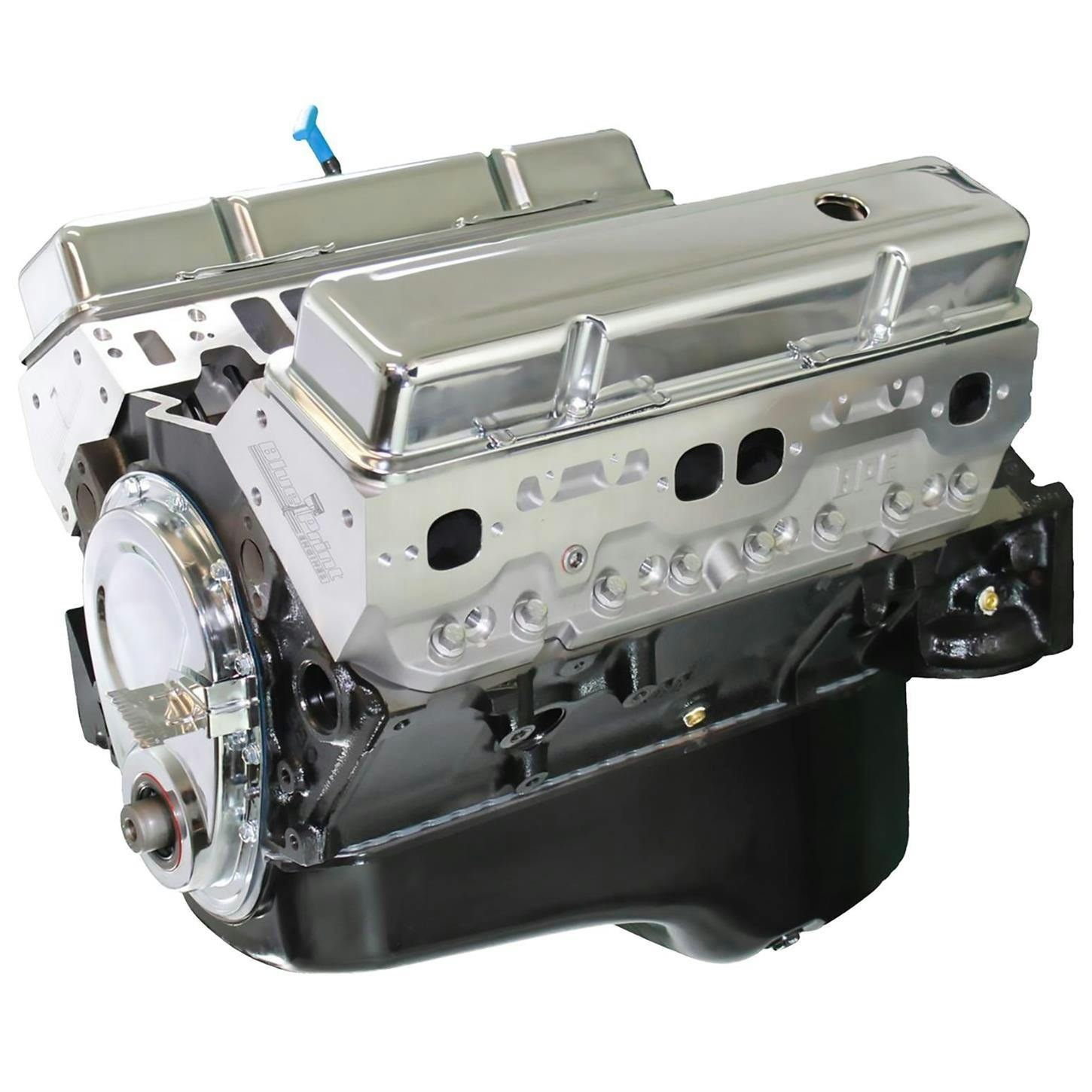

BluePrint BP35513CT1 GM 355 Base Engine, Alum Heads, Roller Cam

#91535513

BluePrint BP35513CT1 GM 355 Base Engine, Alum Heads, Roller Cam

Name: BluePrint BP35513CT1 GM 355 Base Engine, Alum Heads, Roller Cam
Brand: BluePrint Engines
SKU: 91535513
Price: 4289 USD
Availability: Discontinued
Rating: 4.7 (3 reviews)

3 Reviews

10 Questions

Includes a 30 month / 50,000 mile warranty
Pistons have a hypereutectic aluminum construction
Has a 10.1:1 compression ratio and all aluminum heads

Discontinued

This item is currently not available

Shop all BluePrint GM Crate Engines

Product Summary

Universal Fit, Long Block Crate Engine Type

Includes a 30 month / 50,000 mile warranty
Pistons have a hypereutectic aluminum construction
Has a 10.1:1 compression ratio and all aluminum heads
Produces an astonishing 390 HP and 410 ft. lbs. of torque
Engine is carefully dyno tested and ships with printed, proven results

See more details

Key Specs

Crate Engine Type	Long Block
Engine Displacement	355 cu. in.
Horsepower	390 horsepower
Compression Ratio	10.1:1
Torque	410 ft./lbs.

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines BP35513CT1 Details

True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

GM 355 Base Engine - Aluminum Heads - Roller Cam

Overview

HP & Torque: 390 HP / 410 FT LBS
Compression Ratio: 10.1:1
Aluminum Heads
Hypereutectic Pistons
Roller Cam
Cast Steel Crank
Part #: BP35513CT1

Block

4-bolt main, 1-piece rear main seal
Passenger side dipstick
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness

Rotating Assembly

BluePrint premium cast steel crankshaft
Hypereutectic pistons
Chevy heavy beam rods with 150,000 PSI bolts
Hastings moly rings
Melling high volume oil pump
Hydraulic roller cam
Heavy duty double roller timing set

Cylinder Heads

BluePrint Performance aluminium
Hardened retainers and springs
2.02 swirl polished intake valves
1.60 swirl polished exhaust valves
BP Aluminum Head Part# H8002K

Cam Specs

Cam Type: Roller
.495 Intake .503 Exhaust
220 Intake / 224 Exhaust duration
@ .050 - 112 degree lobe separation

Ignition Timing

34 degrees at 3500 RPM

Also Includes

New valve covers
Oil pan
Timing cover
Brass freeze plugs
Dyno test results shipped with engine

Notes

This engine is very similar to our BP35512CT1, but this engine offers a roller cam. If you have questions on the benefits of a roller cam vs a flat tappet cam, please feel free to contact us!

Warranty Information

Click for details

Warranty Information (PDF)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CARB warning

BluePrint Engines BP35513CT1 Specifications

KEY SPECS
MFG. Part #	BP35513CT1
Brand	BluePrint Engines
Crate Engine Type	Long Block
Engine Displacement	355 cu. in.
Horsepower	390 horsepower
Compression Ratio	10.1:1
Torque	410 ft./lbs.
Camshaft Type	Hydraulic Roller Tappet
Cylinder Head Material	Aluminum
Piston Material	Hypereutectic Aluminum
Crankshaft Material	Cast Steel
Camshaft Duration (.050 in)	220° intake / 224° exhaust
Camshaft Lift (in)	.495 intake / .503 exhaust
Intake Manifold Included	No
Distributor Included	No
Connecting Rod Material	Heavy Beam
Valve Covers Included	Yes
Engine Balance	Internal/External
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Oil Pan Included	Yes
Timing Cover Included	Yes
Water Pump Included	No
Harmonic Balancer Included	No
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	No
Spark Plug Wires Included	No

GENERAL
Warranty	30 month / 50,000 miles
Assembled	Yes
Camshaft Included	Yes
Block	4 bolt main
Notes	Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR

Ratings & Reviews

4.7

3 Reviews

Overall Assessment

The product, blueprint motor, garners high praise from customers for its superior quality, practicality, and robust features. Customers highlighted its outstanding performance, regarded it as an excellent investment for their various projects, and were particularly impressed with the power it delivers, making it a great fit for vehicles like the '67 Camaro and the 23 T bucket. The usability and quality of this motor clearly set it apart from competitors, making it a recommended choice among customers for not only powering but also enhancing vehicles.

Write A Review

4.7

3 reviews

Filter by Ratings

Sort Reviews

I would buy this product again

5.0

5 years ago

Skip

Layton Utah

Verified

If you want the best the blueprint moter is the by far your better investment.Cannot wait for when my project ls completed.Speedway has been very helpful when ordering parts and helping with tech questions.

Would Recommend

Very happy with this product.Can't wait to hear it run.

5.0

7 years ago

Nas T 23

Loveland Co 80538

Verified

Going in my 23 T bucket.

Would Recommend

Nice Motor

4.0

8 years ago

Chevy Camaro's rule!

Lincoln, Nebraska

Verified

Engine is a good fit for my 67 Camaro, wanted a engine that has power but a nice cruiser!

Would Recommend

Showing 3 of 3 reviews

Fitment

1994 Buick Roadmaster

Gen 1 L05 Small Block Chevy

1995-1996 Buick Roadmaster

Gen 2 LT1 Small Block Chevy

1999-2000 Cadillac Escalade

Vortec L31 Small Block Chevy

1990-1992 Cadillac Fleetwood

Gen 1 L05 Small Block Chevy

1993-1996 Cadillac Fleetwood

Gen 2 LT1 Small Block Chevy

1987-1994 Chevy Blazer

Gen 1 L05 Small Block Chevy

1986 Chevy C10

Gen 1 L05 Small Block Chevy

1986 Chevy C10 Suburban

Gen 1 L05 Small Block Chevy

1988 Chevy C15

Gen 1 L05 Small Block Chevy

1988-1995 Chevy C1500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C1500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy C1500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C1500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1986-1987 Chevy C20

Gen 1 L05 Small Block Chevy

1986 Chevy C20 Suburban

Gen 1 L05 Small Block Chevy

1988-1995 Chevy C2500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C2500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy C2500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C2500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1986 Chevy C30

Gen 1 L05 Small Block Chevy

1988-1995 Chevy C35

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C35

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1988-1995 Chevy C3500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C3500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1987-1991 Chevy Camaro

Gen 1 L98 Small Block Chevy

1992 Chevy Camaro

Gen 1 L98 Small Block Chevy
Gen 2 LT1 Small Block Chevy

1993-1995 Chevy Camaro

Gen 2 LT1 Small Block Chevy

1996-1999 Chevy Camaro

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1986-1993 Chevy Caprice

Gen 1 L05 Small Block Chevy

1994-1995 Chevy Caprice

Gen 2 LT1 Small Block Chevy

1996 Chevy Caprice

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1986-1991 Chevy Corvette

Gen 1 L98 Small Block Chevy

1992-1995 Chevy Corvette

Gen 2 LT1 Small Block Chevy

1996 Chevy Corvette

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1996-1999 Chevy Express 1500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1996 Chevy Express 2500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1997 Chevy Express 2500

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1998-1999 Chevy Express 2500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1996-1999 Chevy Express 3500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1986-1993 Chevy G10

Gen 1 L05 Small Block Chevy

1986-1995 Chevy G20

Gen 1 L05 Small Block Chevy

1986-1995 Chevy G30

Gen 1 L05 Small Block Chevy

1996 Chevy G30

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1994-1995 Chevy Impala

Gen 2 LT1 Small Block Chevy

1996 Chevy Impala

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1986 Chevy K10

Gen 1 L05 Small Block Chevy

1986 Chevy K10 Suburban

Gen 1 L05 Small Block Chevy

1988-1995 Chevy K1500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K1500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy K1500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K1500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1986 Chevy K20

Gen 1 L05 Small Block Chevy

1986 Chevy K20 Suburban

Gen 1 L05 Small Block Chevy

1988-1995 Chevy K2500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K2500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy K2500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K2500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1986 Chevy K30

Gen 1 L05 Small Block Chevy

1988-1995 Chevy K3500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K3500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1986 Chevy K5 Blazer

Gen 1 L05 Small Block Chevy

1986-1995 Chevy P30

Gen 1 L05 Small Block Chevy

1996-1999 Chevy P30

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1987 Chevy R10

Gen 1 L05 Small Block Chevy

1987-1988 Chevy R10 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R1500 Suburban

Gen 1 L05 Small Block Chevy

1987-1988 Chevy R20

Gen 1 L05 Small Block Chevy

1987-1988 Chevy R20 Suburban

Gen 1 L05 Small Block Chevy

1995 Chevy R25

Gen 1 L05 Small Block Chevy

1996-1999 Chevy R25

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1989 Chevy R2500

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R2500 Suburban

Gen 1 L05 Small Block Chevy

1987-1988 Chevy R30

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R3500

Gen 1 L05 Small Block Chevy

1995 Chevy Silverado

Gen 1 L05 Small Block Chevy

1996-1999 Chevy Silverado

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1987-1994 Chevy Suburban

Gen 1 L05 Small Block Chevy

1995 Chevy Suburban 1500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy Suburban 1500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1995 Chevy Tahoe

Gen 1 L05 Small Block Chevy

1996-1999 Chevy Tahoe

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1987 Chevy V10

Gen 1 L05 Small Block Chevy

1987-1988 Chevy V10 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V1500 Suburban

Gen 1 L05 Small Block Chevy

1987 Chevy V20

Gen 1 L05 Small Block Chevy

1987-1988 Chevy V20 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V2500 Suburban

Gen 1 L05 Small Block Chevy

1987-1988 Chevy V30

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V3500

Gen 1 L05 Small Block Chevy

1998-1999 GMC C1500

Vortec L31 Small Block Chevy

1992-1999 GMC C1500 Suburban

Vortec L31 Small Block Chevy

1987-1995 GMC G1500

Gen 1 L05 Small Block Chevy

1987-1995 GMC G2500

Gen 1 L05 Small Block Chevy

1987-1994 GMC G3500

Gen 1 L05 Small Block Chevy

1995-1996 GMC G3500

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1986 GMC Jimmy

Gen 1 L05 Small Block Chevy

1987 GMC Jimmy

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1988-1990 GMC Jimmy

Gen 1 L05 Small Block Chevy

1998-1999 GMC K1500

Vortec L31 Small Block Chevy

1981-1986 GMC K1500 Suburban

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1992-1999 GMC K1500 Suburban

Vortec L31 Small Block Chevy

1986 GMC K2500

Gen 1 L05 Small Block Chevy

1996-2000 GMC K2500

Vortec L31 Small Block Chevy

1992-1993 GMC K2500 Suburban

Gen 1 L05 Small Block Chevy

1987 GMC R1500 Suburban

Vortec L31 Small Block Chevy

1988-1991 GMC R1500 Suburban

Gen 1 L98 Small Block Chevy

1996-2000 GMC Savana 1500

Vortec L31 Small Block Chevy

1987-1991 GMC V1500 Suburban

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1987 GMC V2500

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1987-1991 GMC V2500 Suburban

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1992-2011 GMC Yukon

Vortec L31 Small Block Chevy
