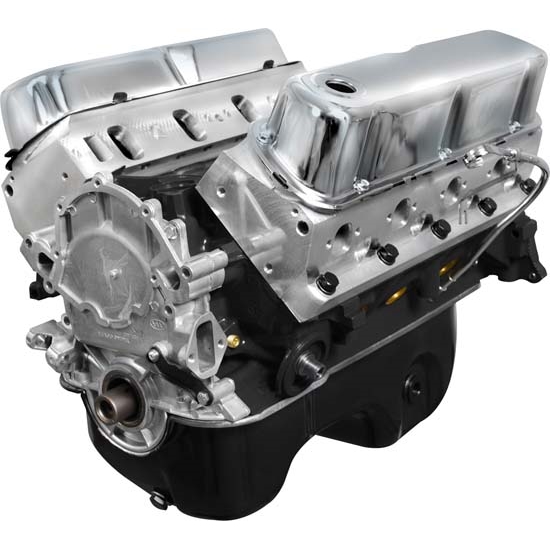

BluePrint BP3474CT Ford 347 Stroker, Base Engine, Alum Heads, Roller Cam
BluePrint BP3474CT Ford 347 Stroker, Base Engine, Alum Heads, Roller Cam

BluePrint BP3474CT Ford 347 Stroker, Base Engine, Alum Heads, Roller Cam

347 Ford Small Block V8, 347 cu. in. Engine Displacement, Long Block Crate Engine Type

0 Reviews | 3 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
BluePrint BP3474CT Ford 347 Stroker, Base Engine, Alum Heads, Roller Cam
BluePrint BP3474CT Ford 347 Stroker, Base Engine, Alum Heads, Roller Cam
Zoomed In Image
Part # 227BP3474CT
$4,350.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Details

Horsepower:
415 horsepower
Torque:
415 ft./lbs.
Engine Displacement:
347 cu. in.
Crate Engine Type:
Long Block
Compression Ratio:
10.0:1
Camshaft Type:
Hydraulic Roller Tappet
Cylinder Head Material:
Aluminum
Piston Material:
Hypereutectic Aluminum
Crankshaft Material:
Cast Steel
Camshaft Duration (@.050 in):
218° intake / 226° exhaust
Intake Manifold Included:
No
Distributor Included:
No
MFG. Part #:
BP3474CT
Warranty:
30 month / 50,000 miles
Notes:
Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR
Valve Covers Included:
Yes
Assembled:
Yes
Cylinder Heads Included:
Yes
Rear Main Seal Style:
1-piece
Oil Pan Included:
Yes
Timing Cover Included:
Yes
Water Pump Included:
No
Harmonic Balancer Included:
No
Flexplate Included:
No
Flywheel Included:
No
Air Cleaner Included:
No
Spark Plugs Included:
No
Spark Plug Wires Included:
No
Camshaft Included:
Yes
Camshaft Lift (in):
.543 intake / .554 exhaust
Bore x Stroke (in):
4.000" bored .040 over x 3.400"
Block:
Hand picked, seasoned, square and parallel decked, 2 bolt main

Info

True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

Ford 347 Stroker - Base Engine - Aluminum Heads - Roller Cam

Overview

  • HP & Torque: 415 HP / 415 FT LBS
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Hypereutectic Pistons
  • Roller Cam
  • Cast Steel Crank
  • Part #: BP3474CT

Block

  • Hand picked seasoned blocks bored .040 over
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  • Cylinders are sonic tested for thickness

Rotating Assembly

  • New cast steel crankshaft
  • Forged I beam rods
  • Hypereutectic pistons
  • Hastings Moly rings
  • Balanced rotating assembly
  • High volume oil pump
  • Hydraulic roller camshaft
  • Heavy duty double roller timing set

Cylinder Heads

  • BluePrint Performance Aluminum
  • Hardened retainers and springs
  • 2.02 swirl polished intake valves
  • 1.60 swirl polished exhaust valves
  • BP Aluminum Head Part# HP9008

Cam Specs

  • Cam Type: Roller
  • .543 Intake .554 Exhaust
  • 218 Intake / 226 Exhaust duration
  • @ .050 - 112 degree lobe separation

Ignition Timing

  • 34 degrees at 3500 RPM

Also Includes

  • Valve covers
  • Painted oil pan
  • Brass freeze plugs
  • Dyno test results shipped with engine

Warranty

  • 30 month / 50,000 mile

Notes

Not for use in pollution controlled vehicles. *A bronze distributor gear is NOT recommended on this engine This engine is not compatible with factory fuel injection.

Warranties

Warranty Information (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
