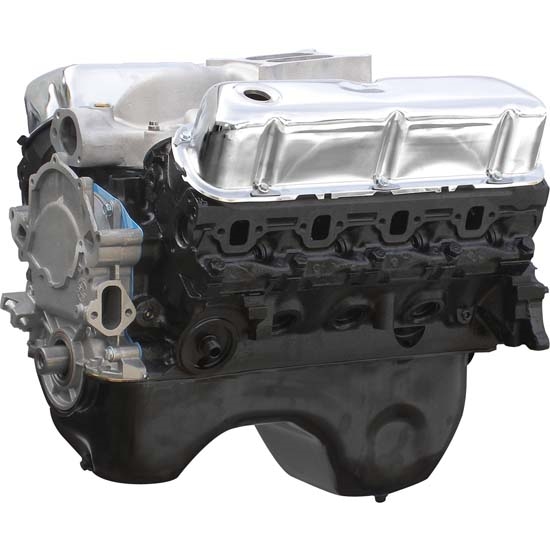

BluePrint BP3472CT Ford 347 Stroker, Base Engine, Cast Iron Heads
BluePrint BP3472CT Ford 347 Stroker, Base Engine, Cast Iron Heads

BluePrint BP3472CT Ford 347 Stroker, Base Engine, Cast Iron Heads

0 Reviews | 0 Answered Questions
Discontinued
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
BluePrint BP3472CT Ford 347 Stroker, Base Engine, Cast Iron Heads
BluePrint BP3472CT Ford 347 Stroker, Base Engine, Cast Iron Heads
BluePrint BP3472CT Ford 347 Stroker, Base Engine, Cast Iron Heads
X
BluePrint BP3472CT Ford 347 Stroker, Base Engine, Cast Iron Heads
Zoomed In Image
Part # 227BP3472CT
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Crate Engine Type:
Long Block
Engine Displacement:
347 cu. in.
Horsepower:
330 horsepower
Compression Ratio:
9.5:1
Torque:
380 ft./lbs.
Camshaft Type:
Hydraulic Flat Tappet
Cylinder Head Material:
Cast Iron
Piston Material:
Hypereutectic Aluminum
Crankshaft Material:
Cast Steel
Camshaft Duration (.050 in):
224° intake / 234° exhaust
Camshaft Lift (in):
.496 intake / .520 exhaust
Bore x Stroke (in):
4.000" bored .040 over x 3.400"
Intake Manifold Included:
Yes
Distributor Included:
No
Connecting Rod Material:
Forged Steel
Warranty:
30 month / 50,000 miles
Valve Covers Included:
Yes
Assembled:
Yes
Engine Balance:
External
Imbalance:
28 oz.
Cylinder Heads Included:
Yes
Rear Main Seal Style:
1-piece
Oil Pan Included:
Yes
Timing Cover Included:
Yes
Water Pump Included:
No
Harmonic Balancer Included:
No
Flexplate Included:
No
Flywheel Included:
No
Air Cleaner Included:
No
Spark Plugs Included:
No
Spark Plug Wires Included:
No
Camshaft Included:
Yes
Block:
Hand picked, seasoned, square and parallel decked, 2 bolt main
MFG. Part #:
BP3472CT

Info

True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

Ford 347 Stroker - Base Engine - Cast Iron Heads - Flat Tappet Cam

Overview

  • HP & Torque: 330 HP / 380 FT LBS
  • Cast Iron Heads
  • Flat Tappet Cam
  • Cast Steel Crank
  • Part #: BP3472CT

Block

  • Hand picked seasoned blocks bored .040 over
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  • Cylinders are sonic tested for thickness

Rotating Assembly

  • New cast steel crankshaft
  • Forged I beam rods
  • Hypereutectic pistons
  • Hastings Moly rings
  • Balanced rotating assembly
  • Melling high volume oil pump
  • Flat tappet hydraulic lifter camshaft
  • Heavy duty double roller timing set

Cylinder Heads

  • Modified Ford cast iron heads
  • Hardened retainers and springs
  • 1.94 swirl polished intake valves
  • 1.60 swirl polished exhaust valves
  • Hardened push rods

Cam Specs

  • Cam Type: Flat Tappet
  • .496 Intake .520 Exhaust
  • 224 Intake / 234 Exhaust duration
  • @ .050 - 110 degree lobe separation

Ignition Timing

  • 34 degrees total at 3500 rpm

Also Includes

  • Dual plane satin aluminum intake manifold
  • Chrome steel valve covers
  • Painted oil pan
  • Brass freeze plugs
  • Dyno test results shipped with engine

Warranty

  • 30 month / 50,000 mile

Notes

This engine requires a 28oz weighted harmonic balancer, and 28oz weighted flexplate/flywheel.BluePrint Engines recommends a 1800- 2200 rpm stall converter.Firing order for this engine is 1,3,7,2,6,5,4,8 Not for use in pollution controlled vehicles.

Warranties

Warranty Information (PDF)

Notes

Zinc Additive Required For Flat Tappet Application, Recommended Oil For Your BluePrint Crate Engine: 10W30, Non-Synthetic. Not for EGR

Important Messages

  • This product is discontinued.
Some parts are not legal for use in California or other states with similar laws/regulations
