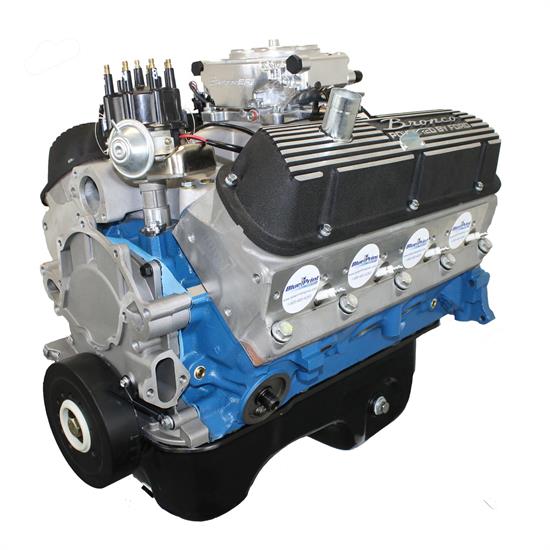

BluePrint 306 Ford Bronco Edition Dressed Long Block, Fuel Inject
Universal Fit, 306 cu. in. Engine Displacement, Long Block Crate Engine Type
BluePrint uses modern techniques to square and parallel-deck the block, align-hone the main bearing bore, hone the cylinders on a computer-controlled machine to within 0.0002 straightness and roundness, and bore the cylinders 0.040 over stock.
The engine is painted Ford Blue, has Bronco Script valve covers and is available with a carburetor. When assembled and ready to ship, we dyno test each and every engine to confirm that 365 horsepower and 365 pounds per foot of torque are there – run free of charge.
Blueprint gives your engine the industry's best-in-class warranty for 30 months or 50,000 miles — with the extra confidence only BluePrint can provide. Their warranty applies to individual or professional installations, is fully transferable, and covers engines worldwide.
- 365 HP and 365 Ft/lbs Torque
- Compression Ratio: 9.2:1
- Aluminum Heads
- Hydraulic Roller Cam
- Cast Steel Crank
- Hypereutectic Pistons
- Hand picked seasoned block
- Square and parallel decked
- Align honed main bearing bore
- Cylinders honed on computer controlled machine to within .0002 straightness and roundness
- Cylinders are sonic tested for thickness
- 2-Bolt Main
- 4.000" Bored .040" Over
- 1-Piece Rear Main Seal
- Mech fuel pump provision: Yes
- Cast steel crankshaft
- 3.000" Stroke
- Upgraded 5.090" connecting rods w/ 150,000 psi bolts
- Hypereutectic pistons
- 50oz External balance
- BluePrint Aluminum Cylinder Heads -HP9009
- 60cc chamber
- 2.02" intake/1.60" exhaust valves
- 190cc intake/60cc exhaust runners
- Cam Type: Roller
- .533 Intake .554 Exhaust
- 215 Intake / 220 Exhaust duration
- @ .050 - 114 degree lobe separation
- 10-16 degrees initial, 32-34 total
- Sniper EFI
- Dual plane, satin aluminum intake manifold
- Small Cap HEI Distributor
- Oil Pan
- Bronco Scrips Valve Covers
- Timing Cover
- BPP50 50 Ounce, 6.4" diameter harmonic balancer
- Dyno test results shipped with engine
- 30 month / 50,000 mile
- Painted Ford Blue
- Engine requires a V-belt standard rotation water pump and belt system
- Recommended break in oil for your BluePrint Crate Engine: BPP710
- Not for EGR
- Engine timing cover is designed for standard rotation water pump ONLY
- This item ships directly from the manufacturer. It may take an additional 30 business days for BluePrint Engines to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
