Part # 91606130
$5,561.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Crate Engine Type:
Deluxe Crate Engine
Engine Displacement:
302 cu. in.
Horsepower:
300 horsepower
Compression Ratio:
9.6:1
Torque:
320+ ft./lbs.
Maximum RPM:
5600
Camshaft Type:
Hydraulic Roller Tappet
Piston Material:
Hypereutectic Aluminum
Crankshaft Material:
Cast Steel
Camshaft Duration (.050 in):
218° intake / 226° exhaust
Camshaft Lift (in):
.543 intake / .554 exhaust
Intake Manifold Included:
Yes
Warranty:
30 month/50,000 mile
Assembled:
Yes
Cylinder Heads Included:
Yes
Harmonic Balancer Included:
Yes
Flexplate Included:
Yes
Block:
Hand picked, seasoned block bored .040 over

Info

BluePrint 302 Ford Hot Rod Crate Engine

Need a new engine for your Blue Oval ride? This Speedway exclusive crate motor will work great in your street rod or classic pickup truck. Machined and assembled at BluePrint Engines, each engine is dyno tested and includes the dyno sheet. Has a 30 month/50,000 mile manufacturer's warranty.



  • 300+ Horsepower at 5300
  • 320+ ft-lbs at 3800
  • Handpicked .040" over-seasoned 1986-1995 block
  • Squared and parallel decked
  • Align honed main bearing bore
  • Cylinders computer honed to within.0002"
  • Cylinders sonic tested
  • Brass freeze plugs
  • 9.6-1 compression ratio
  • Premium cast 2MAE crankshaft - ground 10/10
  • Balanced rotating assembly
  • Harmonic balancer
  • Melling hi-volume oil pump
  • Chrome front sump oil pan
  • Hyd. Roller camshaft .543 int./.554 exh. lift, 218 int./226 exh. duration at .050, 112° lobe separation
  • H.D. double roller timing chain
  • Timing cover w/ dipstick hole
  • Modified Ford E7TE cast iron heads
  • 1.94" swirl polished intake valves
  • 1.60" swirl polished exhaust valves
  • Hardened retainers and springs
  • Hardened pushrods
  • Aluminum valve covers and breathers
  • Polished aluminum dual-plane 4bbl intake manifold
  • Distributor installed and timing set
  • Automatic transmission 157 tooth flexplate included (not installed)

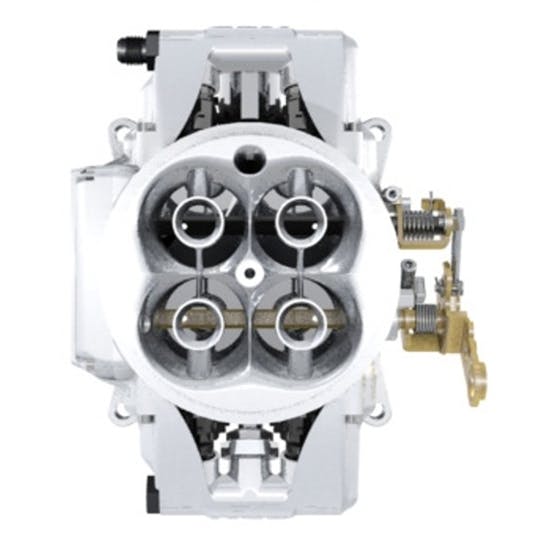

Atomic EFI Throttle Body Master Kit

Install Saturday Morning, Make the Cruise Saturday Night with the Atomic Master kit. The Atomic EFI outshines the competition in ease of installation and performance! The MSD annular ring injection design produces an air/fuel charge with much better mixture as well as an even distribution among the cylinders that the competition cannot match. Better AFRs equal better idle quality, better starting, and better overall drivability throughout the rpm range. You and your engine will be glad when you Go Atomic.

This is the complete kit for anyone planning to convert from a carburetor to Atomic EFI. You get the Throttle Body, Power Module (with Wide Band O2 sensor), Handheld Controller, and the Standard Fuel Kit for up to 525hp (at the crank).

  • Bolts to standard 4 barrel intake manifold
  • 8 wire connection installation
  • Replaces standard square bore carburetor
  • Controls ignition timing
  • Integrated ECU and sensors
  • Single fuel line
  • Self-Tuning
  • No Laptop required

Moroso Spark Plug Wires, HEI Cap

If you have ever tried to put plug wires together yourself, you know how frustrating it can be. These pre-assembled Moroso 8mm spiral core wires are fiberglass reinforced with a silicone outer layer. Wires have 90° boots on both ends. Available in red or black for small block Chevy.

Plug Wire Lengths Included:

  • 37-7/8" x 1
  • 37"       x 2
  • 35-1/2" x 1
  • 33"       x 1
  • 29-5/5" x 1
  • 27-3/4" x 2

GM HEI Distributor Wiring Pigtail Connector

This wiring pigtail features a dual HEI connector that helps clean up your engine bay by eliminating the use of single spade connectors to make battery and tachometer connections. 10 inch long wires that are red and green to identify battery and tachometer.

  • 10-inch length
  • Red and green wires to identify battery and tach leads

Charts

Learn more about these crate engines by reading our article, "Building a Better SBF" as featured in Custom Classic Trucks Magazine.

Crate Engine Installation Guide (PDF)

Truck Freight Shipping Charges Apply - click here for details.

Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • BluePrint 302 Ford Hot Rod Crate Engine w/Front Sump Pan
    Qty x 1
  • Atomic EFI Throttle Body Master Kit
    Qty x 1
  • Moroso Ready to Install Plug Wires HEI/Under Header/Blk
    Qty x 1
  • GM HEI Distributor Wiring Pigtail Connector, 10 Inch
    Qty x 1
