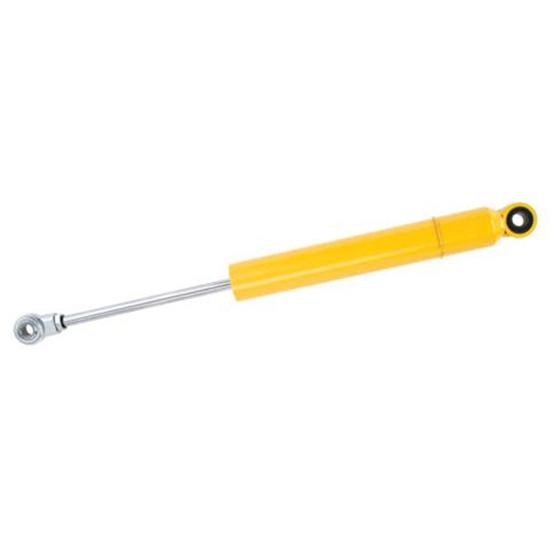

Bilstein F4-BE3-C238-H0 Shock w/ Ends-7 Inch-Comp 4.5/Reb 4.5
Bilstein F4-BE3-C238-H0 Shock w/ Ends-7 Inch-Comp 4.5/Reb 4.5

Bilstein F4-BE3-C238-H0 Shock w/ Ends-7 Inch-Comp 4.5/Reb 4.5

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
Bilstein F4-BE3-C238-H0 Shock w/ Ends-7 Inch-Comp 4.5/Reb 4.5
Bilstein F4-BE3-C238-H0 Shock w/ Ends-7 Inch-Comp 4.5/Reb 4.5
Zoomed In Image
Part # 213S7G4545
$89.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Shock Type:
Mono Tube
Shock Body Material:
Steel
Shock Body Size:
Small Body
Shock Body Type:
Smooth
Shock Stroke Range:
7.00" to 7.99"
Shock Stroke:
7.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
20"
Compressed Length:
13"
Extended Length Range:
20.00" to 20.99"
Compressed Length Range:
13.00" to 13.99"
Compression Valving:
45
Rebound Valving:
45
Finish:
Powder Coated
Coil-Over Compatible:
Yes
Body Diameter:
1.55"
Valve Positions:
45 compression - 45 rebound
Bushing Material:
Steel
MFG. Part #:
S7G4545
Sold in Quantity:
Each
Inside Diameter:
36 mm
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No

Info

Bilstein SG series S7G mono-tube gas shocks feature the latest development in shock valving technology; digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps. Bilstein has set the standard for years in Winston Cup, Indy Car and Formula 1. Now it's setting the standard for Modifieds, Late Models and Open Wheel.

  • Use on the front of Modifieds and Sprints
  • Also suitable for Midgets, TQ's, Dwarf Cars, etc.
  • Monotube gas pressure construction
  • Economy price
  • Lightweight
  • Low rod pressure
  • Bilstein's famous consistent, fade-free performance
  • Features one bearing end and one welded end
  • 1-5/8" steel body
  • 7" stroke
  • Comp. Length:  12"
  • Extended Length:  20"
Some parts are not legal for use in California or other states with similar laws/regulations
