Product Summary

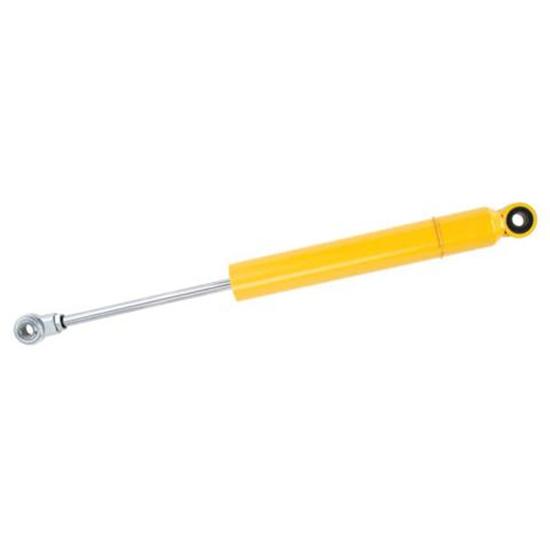

Micro Sprint, Midget, Modified, Mono Tube Shock Type

  • Specifically designed to be used on the front of Modifieds and Sprints
  • Features a durable monotube gas pressure construction
  • Offers Bilstein's famous consistent, fade-free performance that they are renowned for
  • Has one bearing end and one welded end
  • Body has a 1-5/8" diameter and is made from steel with a powder coated finish

Key Specs

MFG. Part #S7G6020
Shock TypeMono Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeSmall Body

Need To Know

Free Shipping on Orders Over $149

Quick and Easy Returns

Details

Bilstein SG Series S7G mono-tube gas shocks feature the latest development in shock valving technology; digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps. Bilstein has set the standard for years in Winston Cup, Indy Car and Formula 1. Now it's setting the standard for Modifieds, Late Models and Open Wheel.

  • Use on the front of Modifieds and Sprints
  • Also suitable for Midgets, TQ's, Dwarf Cars, etc.
  • Monotube gas pressure construction
  • Economy price
  • Lightweight
  • Low rod pressure
  • Bilstein's famous consistent, fade-free performance
  • Features one bearing end and one welded end
  • 1-5/8" steel body
  • 7" stroke
  • Comp. Length:  12"
  • Extended Length:  20"

Specifications

KEY SPECS
MFG. Part #S7G6020
BrandBilstein
Shock TypeMono Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeSmall Body
GENERAL
Shock Stroke Range7.00" to 7.99"
Compression Valving2
Rebound Valving6
Shock Stroke7.00
Upper Shock Mount1/2" Spherical Rod End
Lower Shock Mount1/2" Spherical Rod End
Extended Length Range20.00" to 20.99"
Extended Length20"
Compressed Length Range13.00" to 13.99"
Compressed Length13"
FinishPowder Coated
Coil-Over CompatibleYes
Body Diameter1.55"
Valve Positions20 compression - 60 rebound
Bushing MaterialSteel
Sold in QuantityEach
Inside Diameter36 mm
Shock Eyelet Width.625"
Bolt Hole Circle.500"
Hardware IncludedNo
GTIN Code651860489421
