#213S7G3050

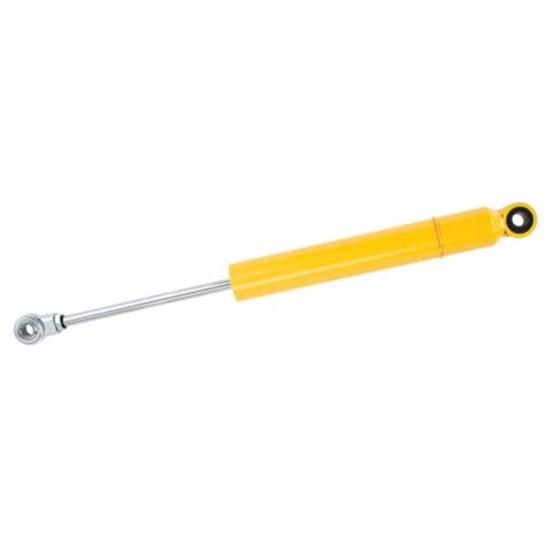

Bilstein F4-BE3-C234-H0 Sm. Steel Shock w Ends, 7"", Comp 5/Reb 3
- Monotube gas pressure construction
- Features one bearing end and one welded end
- 1-5/8" steel body and 7" stroke
Discontinued
This item is currently not available
Shop all Bilstein SG Series Monotube Small Body Shocks
Product Summary
Micro Sprint, Midget, Modified, Mono Tube Shock Type
- Monotube gas pressure construction
- Features one bearing end and one welded end
- 1-5/8" steel body and 7" stroke
- For use on the front of Modifieds, Sprints, TQ's, Dwarf Cars, etc.
- 12" compressed length and 20" extended length
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 1.55" |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBilstein S7G3050 Details
Bilstein S7G3050 Details
Bilstein SG Series S7G mono-tube gas shocks feature the latest development in shock valving technology; digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps. Bilstein has set the standard for years in Winston Cup, Indy Car and Formula 1. Now it's setting the standard for Modifieds, Late Models and Open Wheel.
- Use on the front of Modifieds and Sprints
- Also suitable for Midgets, TQ's, Dwarf Cars, etc.
- Monotube gas pressure construction
- Economy price
- Lightweight
- Low rod pressure
- Bilstein's famous consistent, fade-free performance
- Features one bearing end and one welded end
- 1-5/8" steel body
- 7" stroke
- Comp. Length: 12"
- Extended Length: 20"
Bilstein S7G3050 Specifications
Bilstein S7G3050 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | S7G3050 |
| Brand | Bilstein |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 1.55" |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 5 |
| Rebound Valving | 3 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20" |
| Compressed Length Range | 13.00" to 13.99" |
| Compressed Length | 13" |
| Finish | Powder Coated |
| GENERAL | |
| Shock Stroke | 7.00 |
| Coil-Over Compatible | Yes |
| Valve Positions | 50 compression - 30 rebound |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Inside Diameter | 36 mm |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
| GTIN Code | 651860489360 |
