#213S7G2040

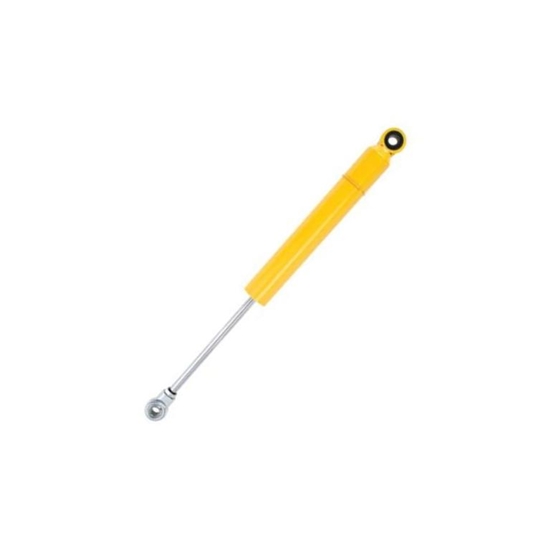

Bilstein F4-BE3-C232-H0 Sm. Steel Shock w Ends, 7", Comp 4/Reb 2
$152.09
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Micro Sprint, Midget, Modified, Mono Tube Shock Type
See more details
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
| Shock Stroke Range | 7.00" to 7.99" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyBilstein S7G2040 Details
Bilstein S7G2040 Details
Bilstein SG Series S7G mono-tube gas shocks feature the latest development in shock valving technology; digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps. Bilstein has set the standard for years in Winston Cup, Indy Car and Formula 1. Now it's setting the standard for Modifieds, Late Models and Open Wheel.
- Use on the front of Modifieds and Sprints
- Also suitable for Midgets, TQ's, Dwarf Cars, etc.
- Monotube gas pressure construction
- Economy price
- Lightweight
- Low rod pressure
- Bilstein's famous consistent, fade-free performance
- Features one bearing end and one welded end
- 1-5/8" steel body
- 7" stroke
- Comp. Length: 12"
- Extended Length: 20"
Bilstein S7G2040 Specifications
Bilstein S7G2040 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | S7G2040 |
| Brand | Bilstein |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 4 |
| Rebound Valving | 2 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20" |
| Compressed Length Range | 13.00" to 13.99" |
| Compressed Length | 13" |
| Finish | Powder Coated |
| Coil-Over Compatible | Yes |
| Gas Charged | Yes |
| GENERAL | |
| Shock Stroke | 7.00 |
| Schrader Valve | No |
| Body Diameter | 1.55" |
| Valve Positions | 40 compression - 20 rebound |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Hole Diameter | .50" |
| Arm Length | 7.00" |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
| GTIN Code | 651860489346 |
