Product Summary

Hobby Stock, Stock Car, Mono Tube Shock Type, Painted

    Key Specs

    Shock TypeMono Tube
    Shock Body MaterialSteel
    Shock Body TypeSmooth
    Shock Body SizeSmall Body
    PositionFront

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

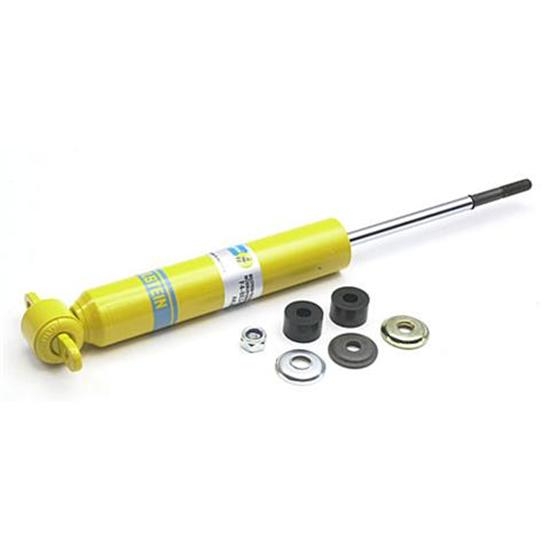

    Bilstein F4-BE3-F131-MO Details

    The technology that has made Bilstein a winner in Winston Cup, Indy Car and Formula 1 is now available to the grassroots level hobby stock and street stock racer. Bilstein monotube gas shocks use deflective disc valving to give more precise and consistent valving. Plus, their rugged construction and precisely machined finishes ensure a long performance life. These shocks may cost more initially but they pay off in the winners circle!

    • Monotube body dissipates heat more effectively than twin-tube designs
    • Nitrogen gas puts shock oil under pressure to totally prevent shock fade
    • Allows for more precise, consistent set-ups
    • Weight transfer when you need it
    • Tires will stay on the track through the rough spots
    • Better control under braking
    • 1973-83 GM A-Body (Chevelle, Malibu, Monte Carlo, etc.)
    • 1978-88 GM G-Body (Monte Carlo, Regal, Cutlass, Grand Prix)

    Item Details

    Valving: 325#/220# Digressive
    Mounting Type: T-Bar to Pin

    Charts

    Bilstein F4-BE3-F131-MO Specifications

    KEY SPECS
    MFG. Part #F4-BE3-F131-MO
    BrandBilstein
    Shock TypeMono Tube
    Shock Body MaterialSteel
    Shock Body TypeSmooth
    Shock Body SizeSmall Body
    PositionFront
    Upper Shock MountSingle Stud
    Lower Shock MountT-Bar
    Extended Length Range13.00" to 13.99"
    Extended Length13.48"
    Compressed Length Range8.00" to 8.99"
    Compressed Length8.6"
    FinishPainted
    Gas ChargedYes
    GENERAL
    Speedway Motors Catalog Part #213-AK6565F
    Schrader ValveNo
    Body Diameter1.56"
    Bushing MaterialRubber
    Sold in QuantityEach
    NotesUpper bushing included.
    Centerline of Holes2.53"
    Arm Length4.88"
    Thread Length1.25"
    GTIN Code651860608082
