Product Summary

Oval Track Cars, Mono Tube Shock Type, Anodized

    Key Specs

    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Shock Body TypeThreaded
    Shock Body SizeLarge Body
    Shock Stroke Range9.00" to 9.99"

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

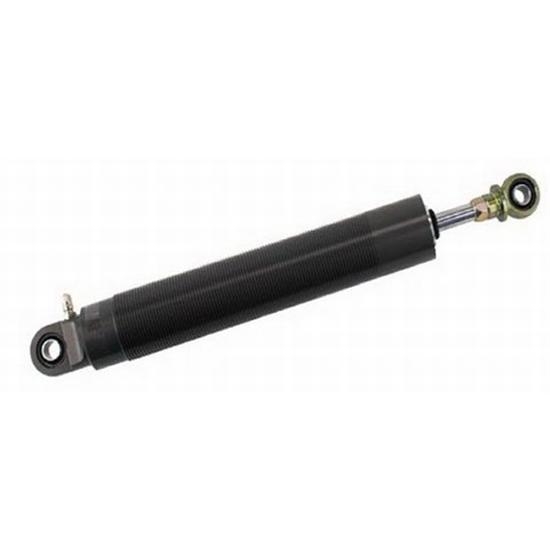

    Bilstein SN9A6010 Details

    • 46mm (1.81") diameter threaded aluminum body
    • Includes Schrader valve and circlip rod guide
    • Rebuildable; shock can be assembled and disassembled for rapid repair or valving change
    • Hard anodized for durability
    • Valve stacks and valving kits available separately
    • Available with linear or digressive piston
    • Every part of the ASN shock is available separately for economical repair
    • World class performance in an aluminum shock at an economy price
    • Bilstein's famous consistent, fade-free performance
    • Designed for, but not limited to Modifieds, Late Models, & Sprint Cars

    Note: With mono-tube gas shocks, you have a longer compressed length. So if you've been running a 9" Pro, Carrera, etc., you need to go to an 8" Bilstein.

    Specs


    Bilstein SN9A6010 Specifications

    KEY SPECS
    MFG. Part #SN9A6010
    BrandBilstein
    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Shock Body TypeThreaded
    Shock Body SizeLarge Body
    Shock Stroke Range9.00" to 9.99"
    Compression Valving1
    Rebound Valving6
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range23.00" to 23.99"
    Extended Length23.6"
    Compressed Length Range15.00" to 15.99"
    Compressed Length15.08"
    FinishAnodized
    Coil-Over CompatibleYes
    Gas ChargedYes
    GENERAL
    Shock Stroke9.00
    Schrader ValveYes
    Body Diameter2.05"
    Valve Positions10 compression - 60 rebound
    RebuildableYes
    Bushing MaterialSteel
    Sold in QuantityEach
    NotesMADE TO ORDER
    Inside Diameter46 mm
    Thread Length8.75"
    Shock Eyelet Width.630"
    Bolt Hole Circle.500"
    Hardware IncludedNo
