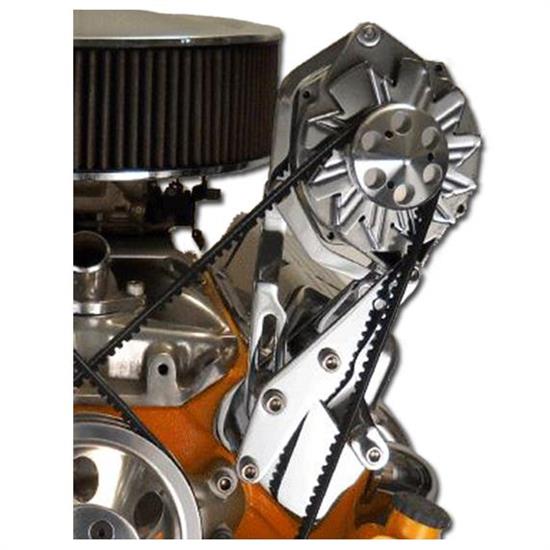

Bills Hot Rod Co.600 Series SBC Wide Set Alternator Bracket, Long

Since 1990 Bill's Hot Rod Co. has had one goal in mind; to design alternator, air conditioner and power steering brackets that fit and are easy to use, as well as affordable and stylish. The 600 Series alternator brackets fit GM 10-SI or 12-Si alternators. Brackets position the units over the valve covers. Brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations with adjusting tips.

• Wide Set Top Mount Alternator Bracket
• Long water pump application
• Driver side
• Fits late Small Block Chevy
• Comes completely assembled
• For long water pump
• Fits GM 10-Si or 12-Si alternator
• 1/4" mild steel plate is used for strength and durability
• No drilling or tapping necessary
• Choose between black, chrome, and raw finishes

Notes:

To protect and preserve the finish on these powdercoated or chrome plated brackets, be sure to apply a good quality wax such as carnauba, as needed.

Bracket mounts using only the existing factory drilled holes found on the front face of the heads. If the valve cover gasket flange extends over the machine surface or head face, you will have to grind or file the circled area as needed to allow the bracket to sit flat on the head face.

91667966 Instructions (PDF)
