Bills Hot Rod Co. 200 Series Early SBC Alternator Bracket, Driver Side
Chevy Small Block V8, Driver Side Mounting Side, Mild Steel, Is Hardware Included
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

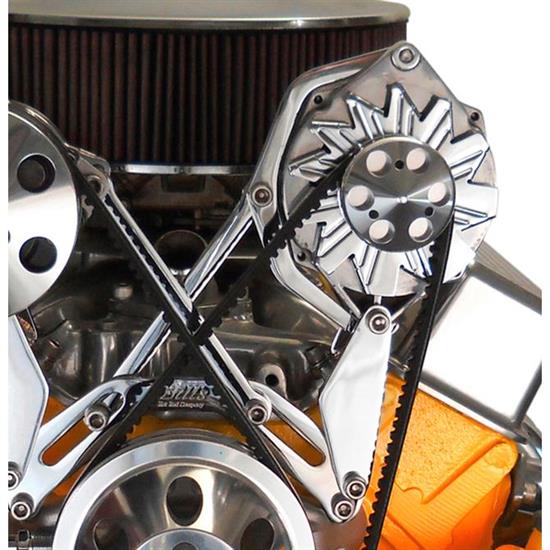

Please Note: The A/C Compressor bracket pictured is shown for reference only and is NOT included in this assembly. Alternator bracket available ONLY.
Since 1990 Bill's Hot Rod Co. has had one goal in mind; to design alternator, air conditioner and power steering brackets that fit and are easy to use, as well as affordable and stylish. The 200 Series alternator brackets fit GM 10-SI or 12-Si alternators. Brackets position the units on top of the engine, keeping them close to the middle and as low as possible. Brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations with adjusting tips.
- Alternator Bracket - drivers side mount
- Fits early Small Block Chevy
- Comes completely assembled
- Fits GM 10-Si or 12-Si alternator
- 1/4" mild steel plate is used for strength and durability
- No drilling or tapping necessary
- Choose between black, chrome, and raw finishes
For use with 55-68 short-style water pumps only. Not for use with Vortec cylinder heads.
To protect and preserve the finish on these powdercoated or chrome plated brackets, be sure to apply a good quality wax such as carnauba, as needed.
Bracket mounts using only the existing factory drilled holes found on the front face of the heads. Some minor grinding or filing on the manifold may be necessary.
This 200 Series bracket will work with the 1970 & later Non 'Vortec/Fast Burn' type cylinder heads.
