Product Summary

10,000 lbs. Lifting Capacity, 169" Overall Height

    Key Specs

    MFG. Part #5175401

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

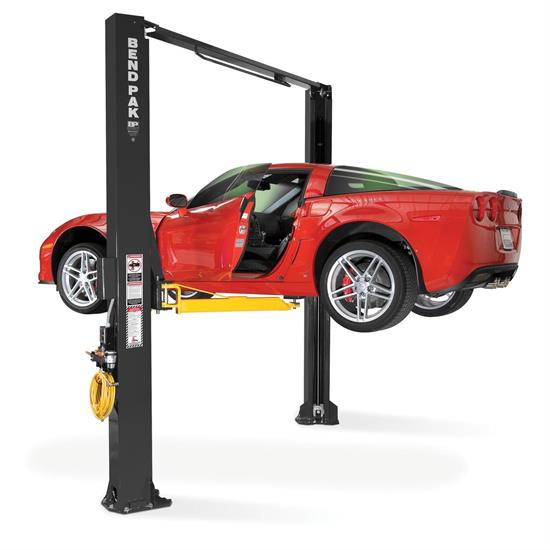

    The BendPak XPR-10AS-168 future-proofs your business. Get the same exceptional direct-drive lifting performance, clearfloor convenience and genius asymmetrical rotated post system as with the standard XPR-10AS, but with an added 23” up top. Make sure your business can specialize in taller, “Sprinter” delivery, service and transportation vehicles before it’s too late. The BendPak XPR-10AS-168 is the super-industrial-strength piece of equipment that has it all: leading-edge technology, top-of-the-line materials, design that’s way ahead of its time and a 5-ton lifting capacity. Fits in shops with ceilings higher than 14’.

    The XPR-10AS-168 features double-telescoping screw pads with gouge and tear-resistant polyurethane pads to help increase workplace safety and reduce operating costs. A set of our 63 mm stacking adapters included as standard accessories.The XPR-10AS-168 is a rugged, close-top model lift with a 10,000-lb. maximum lifting capacity. Features a dual-synchro equalization system and user-friendly controls.

    Featuring a revolutionary 30° rotated column scheme for added door-opening clearance, the XPR-10AS-168 minimizes costly damage to customer vehicles and interior car access, even when it’s between the posts. Plus, the unique Tru-Metric carriage and arm design combine to give users the ability to load vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column).

    For more information check out

    • 10,000-lb. lifting capacity
    • Bolt-on 24" column extensions provide added overhead clearance
    • Expandable top beam accommodates wide or narrow drive-thru configuration
    • Padded overhead safety shutoff bar
    • Exclusive Tru-Metric arm design for more versatile arm positioning
    • 30° rotated single-piece columns
    • Single-point safety release
    • Drop-end arms provide a lower pad height
    • Dual hydraulic direct-drive cylinders
    • Over-sized 53" tall carriage for superior strength and durability
    • Electric / hydraulic power system
    • Large, 17" x 19" A36 steel base plate
    • Self-lubricating dura-glide UHMW polyethylene bearing system
    • Safety locks in each column spaced every 3"
    • Automatic arm restraints
    • Heavy-duty 1/2" aircraft-quality equalizer cables
    • Oversized cable sheave diameter reduces cable fatigue
    • 4-piece 63mm stackable adapter set comes standard
    • Triple-telescoping arm design
    • Versatile drop-in contact pads with stackable adapters
    • ?ALI approved.

    Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.

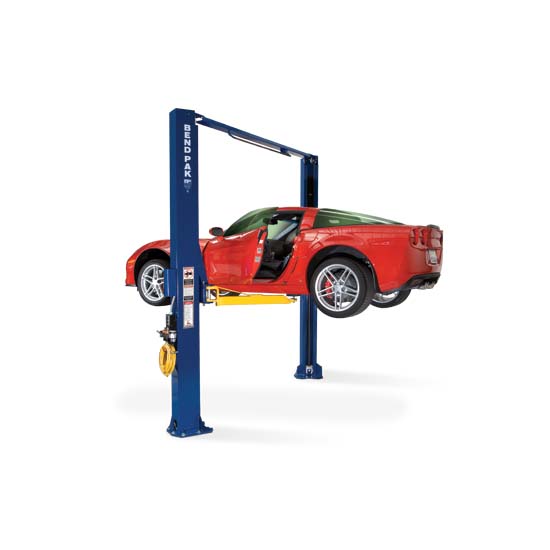

    Product/photo update:  This unit is now provided gray in color and not blue as shown or previously shown/offered.




    Duration: From the date of purchase by the original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.

    • Five Years (60-Months) Bumper-to-Bumper Warranty on the lift structure
    • Two Years (24-Months) Warranty on the hydraulic cylinder(s) and power unit
    • One Year (12-Months) Labor Warranty on site or at factory

    For full warranty details, please see: Two-Post Lifts/Four-Post Lifts Warranty (PDF)


    MFG. Part #5175401
    GTIN Code849672004035
    Lifting Capacity10,000 lbs.
    Overall Height169"
    Overall Width- Narrow Configuration137"
    Overall Width- Wide Configuration145"
    Width Outside of Columns- Narrow133"
    Width Outside of Columns- Wide141"
    Floor to Overhead Switch165"
    Inside Columns- Narrow104"
    Inside Columns- Wide112"
    Front Arm Max. Reach45.5"
    Front Arm Min. Reach23.5"
    Rear Arm Max. Reach60"
    Rear Arm Min. Reach42.5"
    Motor220 VAC
    Time to Full Raise45 seconds
    Max Load Per Arm2500 lbs.
