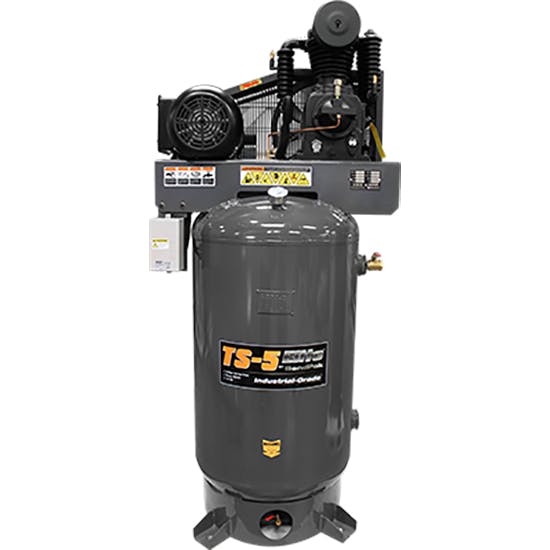

BendPak 5179105 V-Max Elite Air Compressor, 80 Gallon, 5HP
BendPak 5179105 V-Max Elite Air Compressor, 80 Gallon, 5HP

BendPak 5179105 V-Max Elite Air Compressor, 80 Gallon, 5HP

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
BendPak 5179105 V-Max Elite Air Compressor, 80 Gallon, 5HP
BendPak 5179105 V-Max Elite Air Compressor, 80 Gallon, 5HP
BendPak 5179105 V-Max Elite Air Compressor, 80 Gallon, 5HP
X
BendPak 5179105 V-Max Elite Air Compressor, 80 Gallon, 5HP
Zoomed In Image
We estimate this item will ship on or before December 1st.
Part # 9105179105
Save 8%
$2,525.00
$2,755.00
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Sold in Quantity:
Each
MFG. Part #:
5179105
GTIN Code:
00849672003687

Info

The TS-5 Elite air compressor is designed to save energy. Built for high productivity and lower operating costs, it produces more compressed air using an extremely efficient and low-energy-consuming 5 HP motor.

The TS-5 is one of BendPak’s most popular air compressor models. High-quality, slow running cast iron compressor pumps deliver proven longevity in the most demanding conditions. Because they run at a slower RPM than most comparable units, they’re quieter, run cooler and cost less to operate. 100% cast iron pumps provide the quality and performance needed for heavy?use applications like automotive and body repair to manufacturing and industrial service.

Features

Motor

Horsepower: 5 HP
RPM: 1,740 RPM
Voltage: 208 - 230V
Phase: 1 Ph
Hertz: 60 Hz
Running Amps (SFA): 26-23.8A
Peak Amps: 54-48A
Recommended Breaker: 30A
Noise: 75 dB

Pump

Style: 2-Stage / 2-Piston / Vertical
Lubrication: Splash / Oil
Material: 100% Cast Iron
Pump RPM: 625 RPM
Duty Cycle: Continuous
CFM @ 90 PSI: 17.9 CFM
CFM @ Max PSI: 17.2 CFM
Auto Turn-On Pressure: 145 psi
Auto Shut-Off Pressure: 175 psi
Max PSI: 175 psi

Tank

Orientation: Vertical
Size: 80 gallon
Outlet: 1/2" Fitting
Certification: ASME

Dimensions

Width: 39" (991 mm)
Depth: 79" (2,007 mm)
Height: 26" (660 mm)
Weight: 619 lbs. (281 kg)

Warranties

BendPak Limited Warranty (PDF)

Specs

  • Extra quiet, low RPM pump
  • 5 HP energy efficient motor
  • Pressure switch ensures efficient operation at all times with no wasted energy
  • Cast iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with pressed in sleeves
  • Cast iron Elite pump features simple splash lubrication for total reliability and a finned cylinder configuration that provides 360° cooling
  • Dual drive belts require less belt tension resulting in less load on pump bearings, longer belt life and low vibration
  • Fully enclosed belt guard
  • ASME rated tank
  • Large surface area and cooling fins on cylinders and forced air after cooler provides efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
  • Precision honed cylinders increase efficiency and oil control
  • Oversized ductile iron crankshaft provides extra strength and longer wear
  • Tapered roller main bearings provide full contact and support of the crankshaft and needle type piston pin bearings properly distribute bearing loads
  • Precision balanced flywheel has forced air fan blades for optimum compressor cooling and life
  • Magnetic starter provides thermal overload protection and minimizes start loads providing long life and trouble free operation
  • ASME rated safety valve protects the compressor from overpressure and safeguards the operator
  • Balanced flywheel and counterbalanced crankshaft provides vibration free operation
  • Readily accessible disc valves do not require disassembly of compressor piping for easy accessibility and reduced maintenance cost and downtime
  • High density, die cast aluminum alloy rods minimize reciprocating weight
  • Rugged cast iron oil reservoir has convenient sight gauge glass, large oil drain and convenient fill cap
  • Automatic pressure switch provides auto start and stop
  • Integrated pressure unloader valves are built into the intake valve assembly on the compressor head, reducing internal pump heat from initial startup compression
  • Pressure gauge with service valve
