Add to Cart
$11,735.00

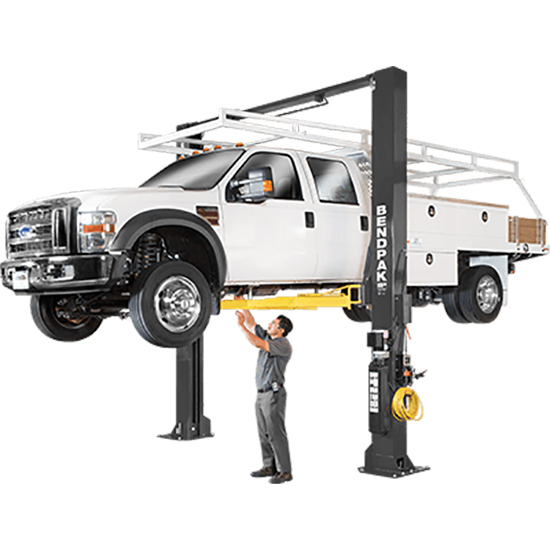

BendPak 5175409 Two-Post Vehicle Lift 18K Lbs, Clearfloor
BendPak 5175409 Two-Post Vehicle Lift 18K Lbs, Clearfloor

BendPak 5175409 Two-Post Vehicle Lift 18K Lbs, Clearfloor

18000 lbs. Lifting Capacity, 170.00" Overall Height, 165.00" Floor to Overhead Switch

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
BendPak 5175409 Two-Post Vehicle Lift 18K Lbs, Clearfloor
BendPak 5175409 Two-Post Vehicle Lift 18K Lbs, Clearfloor
BendPak 5175409 Two-Post Vehicle Lift 18K Lbs, Clearfloor
X
BendPak 5175409 Two-Post Vehicle Lift 18K Lbs, Clearfloor
Zoomed In Image
We estimate this item will ship on or before March 31st.
Part # 9105175409
$11,735.00
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Sold in Quantity:
Each
MFG. Part #:
5175409
GTIN Code:
00849672004219
Lifting Capacity:
18000 lbs.
Overall Height:
170.00"
Floor to Overhead Switch:
165.00"
Front Arm Max. Reach:
60.00"
Front Arm Min. Reach:
39.00"
Rear Arm Max. Reach:
60.00"
Rear Arm Min. Reach:
39.00"
Min Pad Height:
5.00"
Rise:
69.00"
Motor:
220 VAC / 60 Hz / 1 Ph
Time to Full Raise:
45.00 seconds
Max Load Per Arm:
4500 lbs.
Overall Width:
155.00"
Height of Columns:
170.00"
Max Lifting Height:
80.00"
Width Between Posts:
120.00"

Info

Shops that work on massive fleets and vehicles need a powerful car lift with a small footprint. BendPak’s 18,000-lb. capacity XPR-18CL offers the most extraordinary lifting capacity of any two-post lift we make, which means you get the best column, carriage and frame component construction we offer.

With an XPR-18CL two-post car lift, you will service an incredibly diverse array of vehicles. High-capacity two-post lifts are commonly known as “all-service” lifts. Given their versatility, they’re the most common lift type found in professional shops. And, because they’re going to be in so many shops, it’s important that the XPR-18CL can lift any vehicle that falls well under the max weight capacity. This means the telescoping arms will adjust to fit under race cars and other low ground-clearance vehicles.

In addition to smaller cars and light trucks, it will also lift oversized equipment: trailers, farming equipment, commercial trucks, etc. The columns are built wide enough to accommodate just about any vehicle up to 18,000 lbs., making the XPR-18CL ideal for service shops that want to be prepared for the anything. The only way to get more lifting power from a BendPak lift is to move into four-post lift territory. However, for a smaller footprint, extreme power and majestic durability and safety, you can’t do better than the BendPak XPR-18CL.

Features

Capacity

Lifting Capacity* 18,000 lbs. (8,165 kg)
*Max Capacity / Front Axle 9,000 lbs. (4,082 kg)
*Max Capacity / Rear Axle 9,000 lbs. (4,082 kg)

Rise

A - Rise: 69" (1,753 mm)
B - Rise + Pad Only: 74" (1,880 mm)
C - Rise + Pad + 63 mm Adapter: 80" (2,032 mm)
D - Min. Height + Pad: 5" (127 mm)
Time to Full Rise: 45 seconds

Outside Dimensions

E - Height Overall: 170" (4,318 mm)
F - Width Overall: 155" (3,937 mm)
G - Outside Columns: 144" (3,658 mm)

Inside Dimensions

H - Inside Columns: 120" (3,048 mm)
I - Drive-Thru Clearance: 106" (2,692 mm)
J - Floor To Overhead Switch: 165" (4,191 mm)

Arms & Pads

K - Front Arm Reach: (MIN) 39" (991 mm)
K - Front Arm Reach: (MAX) 60" (1,524 mm)
L - Rear Arm Reach: (MIN) 39" (991 mm)
L - Rear Arm Reach: (MAX) 60" (1,524 mm)
Max Load Per Arm 4,500 lbs. (2,041 kg)

Power Unit

Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB

Warranties

BendPak Limited Warranty (PDF)

Specs

  • 18,000-lb. lifting capacity
  • Padded overhead safety shutoff bar
  • Extended height top-beam provides greater overhead clearance
  • Single-point safety release
  • Dual direct-drive hydraulic cylinders
  • Dual-synchro equalization system for equal lifting
  • Oversized 53" tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Oversized A36 steel base plates
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3"
  • Plated arm restraints and arm pins for rust prevention
  • Heavy-duty 1/2" aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • Durable, rubber lift pads with stackable adapters
  • Multi-piece adapter set includes four 6" stackable adapters, four 3" stackable adapters, four polyurethane contact pads and four frame cradle pads. Ideal for trucks and vans with running boards or auxiliary fuel tanks.
  • Convenient storage is included for truck and van adapters
  • Versatile drop-in contact pads with stackable adapters

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for BendPak to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
