Product Summary

10,000 lbs. Lifting Capacity, 3" Lock Spacing

  • This two post lift has a 10,000-lb lifting capacity and features heavy-duty 1/2" aircraft-quality equalizer cables
  • Has single-piece columns and a single-point safety release
  • All lifts are built to safety standards well above normal OSHA/ALI/ETL requirements
  • Engineered with a telescoping arm design for more versatile arm positioning
  • Includes a self-lubricating dura-glide UHMW polyethylene bearing system

Key Specs

MFG. Part #5175395

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

BendPak 5175395 Details

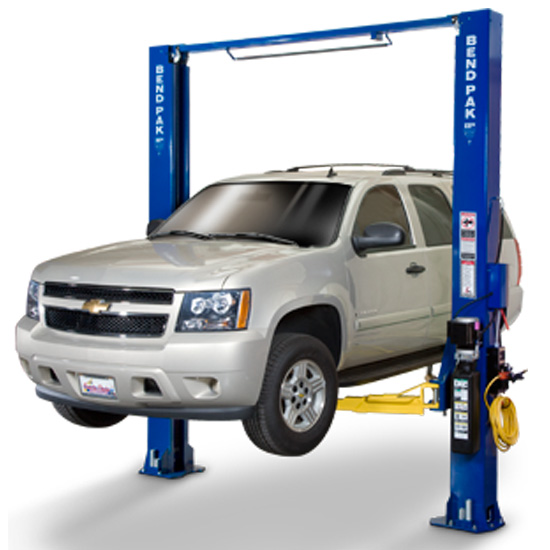

Obtain clearfloor versatility and rugged dependability with the BendPak XPR-10S two-post lift! The XPR-10S features double-telescoping screw pads with gouge and tear resistant polyurethane pads to help increase workplace safety and reduce operating costs. A set of our 63mm stacking adapters are also included as standard accessories.

XPR-10S symmetric two-post lift features an adjustable top beam to accommodate wide or narrow installation setups. This unique configurable design allows you to choose the best setting for your specific space or vehicle lifting requirements. The highly sophisticated yet simple and dependable XPR-Series design requires very little service or maintenance for an overall lower cost of ownership. All BendPak's XPR two-post models feature dual "direct-drive" lowpressure cylinders, maintenance-free UHMW load bearings, single-piece columns, extra-tall lifting carriages and triple-telescoping arm configuration for increase arm positioning versatility.

The entire XPR-Series is a reflection of BendPak's continuing commitment to producing lifts of only the highest quality, maximum safety and utmost reliability. Featuring the most advanced engineered technology available in the industry, these lifts are built to safety standards well above normal OSHA/ALI/ETL requirements. The XPR-Series lifts include a wealth of standard and optional features to support the operator's need for performance and security. Combined with BendPak's tradition of durable, reliable construction, the XPR-Series has become the new industry benchmark that others are sure to follow.

  • 10,000-lb lifting capacity
  • Expandable top beam accommodates wide or narrow drive-thru configuration
  • Double-telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar
  • Telescoping arm design for more versatile arm positioning
  • Single-piece columns
  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct-drive cylinders
  • Oversized 53" tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Large, 17" x 19" A36 steel base plate
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3"
  • Automatic arm restraints
  • Heavy-duty 1/2" aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • 4-piece 63mm stackable adapter set comes standard
  • Triple-telescoping front arms
  • ALI Approved

Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.

Product/photo update:  This unit is now provided gray in color and not blue as shown or previously shown/offered.




Duration: From the date of purchase by the original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.

  • Five Years (60-Months) Bumper-to-Bumper Warranty on the lift structure
  • Two Years (24-Months) Warranty on the hydraulic cylinder(s) and power unit
  • One Year (12-Months) Labor Warranty on site or at factory

For full warranty details, please see: Two-Post Lifts/Four-Post Lifts Warranty (PDF)

BendPak 5175395 Specifications

MFG. Part #5175395
GTIN Code00849672003991
Sold in QuantityEach
Lifting Capacity10,000 lbs.
Lock Spacing3"
