$5,140.00

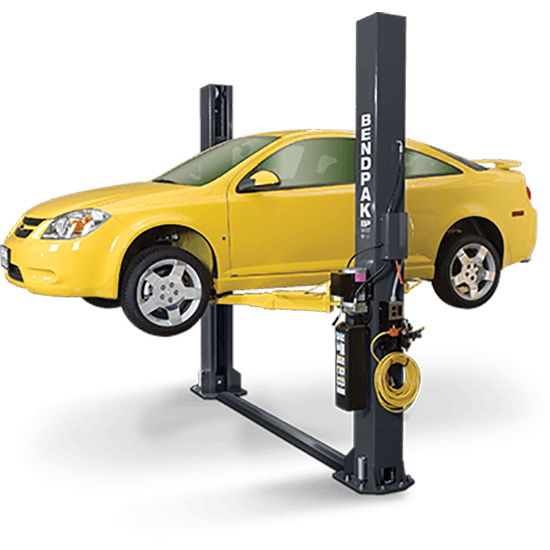

BendPak 5175390 Two-Post Vehicle Lift 9k Lbs, Floorplate
BendPak 5175390 Two-Post Vehicle Lift 9k Lbs, Floorplate

BendPak 5175390 Two-Post Vehicle Lift 9k Lbs, Floorplate

9000 lbs. Lifting Capacity, 113.00" Overall Height, 47.50" Front Arm Max. Reach, 72.00" Rise

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
BendPak 5175390 Two-Post Vehicle Lift 9k Lbs, Floorplate
BendPak 5175390 Two-Post Vehicle Lift 9k Lbs, Floorplate
BendPak 5175390 Two-Post Vehicle Lift 9k Lbs, Floorplate
X
BendPak 5175390 Two-Post Vehicle Lift 9k Lbs, Floorplate
Zoomed In Image
We estimate this item will ship on or before October 4th.
Part # 9105175390
$5,140.00
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Sold in Quantity:
Each
MFG. Part #:
5175390
GTIN Code:
00849672003915
Lifting Capacity:
9000 lbs.
Overall Height:
113.00"
Front Arm Max. Reach:
47.50"
Front Arm Min. Reach:
28.50"
Rear Arm Max. Reach:
47.50"
Rear Arm Min. Reach:
28.50"
Min Pad Height:
4.25"
Rise:
72.00"
Motor:
220 VAC / 60 Hz / 1 Ph
Time to Full Raise:
45.00 seconds
Max Load Per Arm:
2250 lbs.
Overall Width:
132.00"
Max Lifting Height:
80.50"
Width Between Posts:
105.00"

Info

The XPR-9S two-post lift offers automotive service professionals unparalleled lifting performance and lasting quality. State-of-the-art technology, top-notch materials, a forward-looking design and a 9,000-lb. lifting capacity make this lift a fantastic purchase.

The XPR-9S two-post lift is designed for pros and hobbyists alike. Powerful and secure, this lift is CE Certified and meets or exceeds the standards prescribed by European Standard EN 1493. It features an incredibly rapid lifting speed and robust menu of features to increase efficiency and productivity, all with fewer serviceable parts and reduced maintenance. The results are lower operating expenses and higher productivity. If you’re looking to do more in less time than ever before, this model is the perfect addition to your shop.

These two-post lift models have the capacity to effortlessly lift full-size pickups and commercial vehicles, yet they still provide specific capabilities for sport and compact cars, both foreign and domestic. The XPR-9S is a rugged, open-top model with a 9,000-lb. maximum capacity, making it perfect for garages with low ceilings. When it comes to ease-of-use, our dual-synchro equalization system and user-friendly controls are the stuff of legend.

BendPak is committed to manufacturing the highest quality lifts on the market, which is why our engineers ensure that our lifts are designed, built and tested above OSHA/ALI/ETL standards. The crucial features you see on the XPR-9S are also seen in our heavy-duty truck lift models.

Features

Capacity

Lifting Capacity* 9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle 4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle 4,500 lbs. (2,041 kg)

Rise

A - Rise: 72" (1,829 mm)
B - Rise + Pad Only: 78" (1,981 mm)
C - Rise + Pad + 63 mm Adapter: 80.5" (2,045 mm)
D - Min. Height + Pad: 4.25" (108 mm)
Time to Full Rise: 45 seconds

Outside Dimensions

E - Height Overall: 113" (2,870 mm)
F - Width Overall: 132" (3,353 mm) or 145" (3,683 mm)
G - Outside Columns: 126.75" (3,219 mm) or 139.75" (3,550 mm)

Inside Dimensions

H - Inside Columns: 105" (2,667 mm) or 118" (2,997 mm)
I - Drive-Thru Clearance: 93" (2,362 mm) or 106" (2,692 mm)

Arms & Pads

K - Front Arm Reach: (MIN) 27.5" (699 mm)
K - Front Arm Reach: (MAX) 51.5" (1,308 mm)
L - Rear Arm Reach: (MIN) 34" (864 mm)
L - Rear Arm Reach: (MAX) 54.5" (1,384 mm)
Screw Pad Adjustment: 1.75" (44 mm)
Max Load Per Arm 2,250 lbs. (1,021 kg)

Floorplate

L - Height: 1.75" (44 mm)
M - Width: 8.5" (216 mm)

Power Unit

Motor: 220 VAC / 60 Hz. 1Ph.
Noise: 45 dB

Warranties

BendPak Limited Warranty (PDF)

Specs

  • 9,000-lb lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Shorter column for low-ceiling installations
  • Extended rise gives you over 6 feet of under clearance
  • Single-piece columns
  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Chain lifting system combined with dual hydraulic cylinders
  • Electric / hydraulic power system
  • Large 20" x 19" steel base plates
  • Self-lubricating dura-glide polyethylene bearing system
  • Safety locks in each column spaced every 3-inches
  • Plated arm restraints and arm pins for rust prevention
  • Heavy-duty dual 3/8" equalizer cables with oversize cable sheaves
  • 4-piece 63 mm stackable adapter set comes standard
