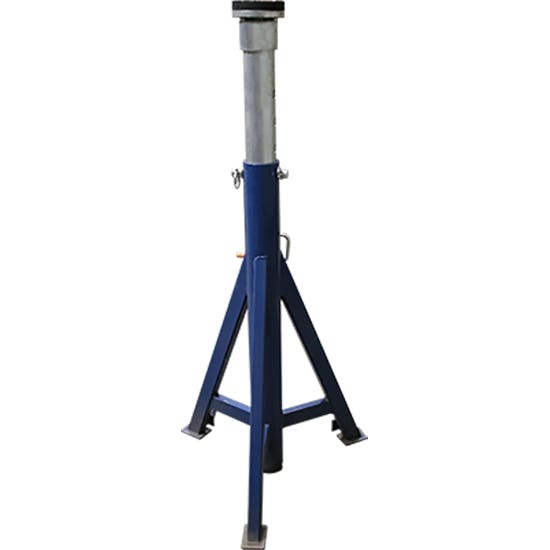

The MLS-18 is a support stand used to support raised heavy-duty vehicles and facilitate maintenance and inspection procedures. The support stand is designed to be used in sets of four, six or eight and must be placed under a level, raised vehicle at the support points designated by the vehicle manufacturer.

Features

Minimum Height 48.75" (1,238 mm)

Maximum Height 74.5" (1,892 mm)

Pin Positions 9

Screw Pad Adjustment 3.5" (89 mm)

Stroke 25.75" (654 mm)

Base Diameter 32" (813 mm)

Wheels / Diameter 3" (76 mm)

Top Pad Diameter 6" (152 mm)

Stand Capacity 18,000 lbs. (8,165 kg)

Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.

Charts

BendPak Delivery Requirements (PDF)

BendPak Delivery Information (PDF)

Specs

18,000-lb. capacity
Tripod design evenly distributes weight under load
Each leg is equipped with an 11 sq. in. floor pad
Can be easily moved and placed under a vehicle by means of two 3" diameter wheels
Equipped with a foldaway transport handle
Center tube is spring-assisted to facilitate adjustment of the stand
Adjustable from 48.75" to 74.5"
9 pin positions
1" diameter self-locking ACME screw for fine adjustment of the stand height

Warranty Information

Click for details

BendPak Limited Warranty (PDF)

BendPak 5175207 Specifications

KEY SPECS
MFG. Part #	5175207
Brand	BendPak

GENERAL
GTIN Code	00849672002062
Sold in Quantity	Each
