$5,745.00

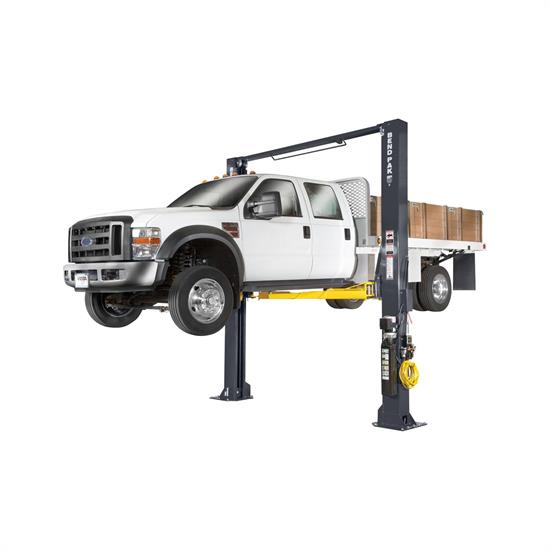

BendPak 5175194 Two-Post Vehicle Lift 10K Lbs, 181 In,Low Profile
BendPak 5175194 Two-Post Vehicle Lift 10K Lbs, 181 In,Low Profile

BendPak 5175194 Two-Post Vehicle Lift 10K Lbs, 181 In,Low Profile

10000 lbs. Lifting Capacity, 157.00" Overall Height, 126.75" Width Outside of Columns- Wide

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
BendPak 5175194 Two-Post Vehicle Lift 10K Lbs, 181 In,Low Profile
BendPak 5175194 Two-Post Vehicle Lift 10K Lbs, 181 In,Low Profile
BendPak 5175194 Two-Post Vehicle Lift 10K Lbs, 181 In,Low Profile
X
BendPak 5175194 Two-Post Vehicle Lift 10K Lbs, 181 In,Low Profile
Zoomed In Image
We estimate this item will ship on or before September 28th.
Part # 9105175194
$5,745.00
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • 10,000 lb. lifting capacity
  • Expandable top beam accommodates wide or narrow configuration
  • Double telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar
  • Extended height with low profile lift arms

Details

Sold in Quantity:
Each
MFG. Part #:
5175194
GTIN Code:
849672015802
Lifting Capacity:
10000 lbs.
Overall Height:
157.00"
Width Outside of Columns- Wide:
126.75"
Floor to Overhead Switch:
147.00"
Inside Columns- Wide:
105.50"
Front Arm Max. Reach:
49.50"
Rear Arm Max. Reach:
52.50"
Rear Arm Min. Reach:
32.25"
Min Pad Height:
4.75"
Rise:
75.00"
Motor:
220 VAC / 60 Hz / 1 Ph
Time to Full Raise:
45.00 seconds
Max Load Per Arm:
2,500 lbs.
Overall Width:
145.00"

Info

With BendPak's 10,000-lb. capacity XPR-10XLS-LP-181 symmetrical two-post lift in your shop, most cars, trucks and SUVs will be raised quickly and effortlessly. Fully ALI Certified, this model features an extra-high lifting carriage. The taller carriage offers an extra 6" of lift, which means vehicles can be raised a full 80". Taller mechanics will enjoy this feature, since it means they no longer have to bend, stoop, strain and even injure themselves while they spend hour after hour working underneath lifted vehicles.

There's no car lift quite like the XPR-10XLS-LP-181. This is the symmetrical version (an asymmetrical version is also available), and it's ideal for shops and operators that deal mainly with vehicles whose centers of gravity are toward the center of the car. Of course, trucks and SUVs can be used with this model as well. Some prefer asymmetrical lifts because they allow a little more door clearance, while other prefer vehicles to be positions as close to the center of the lift as possible. There's no right or wrong—the choice is yours!

Features

  • Extebded height with low profile lift arms
  • 10,000 lb. lifting capacity
  • Expandable top beam accommodates wide or narrow configuration
  • Double telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar
  • Single piece columns
  • Dual hydraulic direct drive cylinders
  • Automatic arm restraints
  • Lowered arm tube supports
  • Maintenance-free UHMW load bearings
  • Oversized 59" tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Large, 17" x 19" A36 steel base plate
  • Self-lubricating dura glide UHMW polyethylene bearing system
  • Single point safety release
  • Safety locks in each column spaced every 3"
  • Automatic overhead shutoff
  • Plated arm restraints and arm pins for rust prevention
  • Heavy duty 1/2" aircraft quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • 4 piece 63 mm stackable adapter set comes standard
  • ALI Certified

Warranties

BendPak Limited Warranty (PDF)

Specs

Capacity

Lifting Capacity 10,000 lbs.
*Max Capacity / Front Axle 5,000 lbs.
*Max Capacity / Rear Axle 5,000 lbs.

Rise

A - Rise: 80"
B - Rise + Pad Only: 79.75"
C - Rise + Pad + 63 mm Adapter: 82.25"
D - Min. Height + Pad: 4.75"
Time to Full Rise: 50 seconds

Outside Dimensions

E - Height Overall: 181"
F - Width Overall: 132"  or 145"
G - Outside Columns: 126.75" or 139.75"

Inside Dimensions

H - Inside Columns: 105.5" or 118.5"
I - Drive-Thru Clearance: 93" or 106"
J - Floor To Overhead Switch: 147"

Arms & Pads

K - Front Arm Reach: (MIN) 25.5"
K - Front Arm Reach: (MAX) 49.5"
L - Rear Arm Reach: (MIN) 32.25"
L - Rear Arm Reach: (MAX) 52.5"
Screw Pad Adjustment: 2"
Max Load Per Arm 2,500 lbs.

Installation Tips

Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.

Charts

BendPak 10k Two (PDF)

BendPak Delivery Requirements (PDF)

BendPak Delivery Information (PDF)

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 8 business days for BendPak to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
