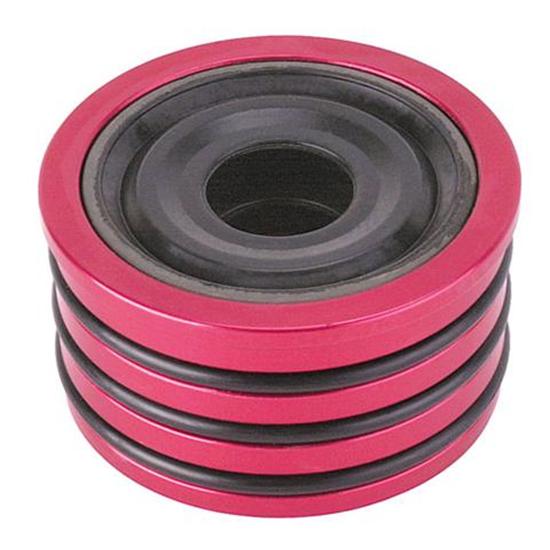

Axle Housing Inner Seal, 9 Inch Ford Grand National/Quick Change Rearends
Grand National, Aluminum, 1.50" Overall Length, Anodized
- These seals will take up to an 1.5” diameter axle
- Designed to keep the gear oil in the center section
- Will fit 9" Ford Grand National and Quick Change type housings
- Features a billet aluminum construction with an anodized finish for added corrosion resistance
- Has three O-rings that seal it to the axle tube and two bonded, heavy duty, neoprene inner seals
High cornering forces can force the gear lube out of the center section and down the axle tube leaving the ring and pinion high and dry! This billet aluminum seal has three O-rings that seal it to the axle tube and two bonded, heavy duty, neoprene inner seals designed to compensate for any amount of axle shaft runout. Keeps gear oil in the center section. These seals will take up to an 1.5” diameter axle.
- Anodized billet aluminum
- A must for cambered rear ends
- For 9" Ford Grand National and Quick Change type housings
- For up to 1.5” diameter axle
- Keeps gear oil in the center section
- Outside Diameter: 2.56"
- Overall Length: 1.50"
- This seal will fit our steel wide 5 axle
- Choose housing tube I.D. size needed:
- 2.500" - Gold
- 2.562" - Blue
- 2.625" - Red
- 2.750" - Silver
Item DetailsFor 9" Ford Grand National and
Quick Change type housings
Seals-it axle seals are fully rebuildable. Contact their Tech Center for assistance.
- Phone 1-860-979-0060
- Email firstname.lastname@example.org
919-0951 Instructions (PDF)
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
