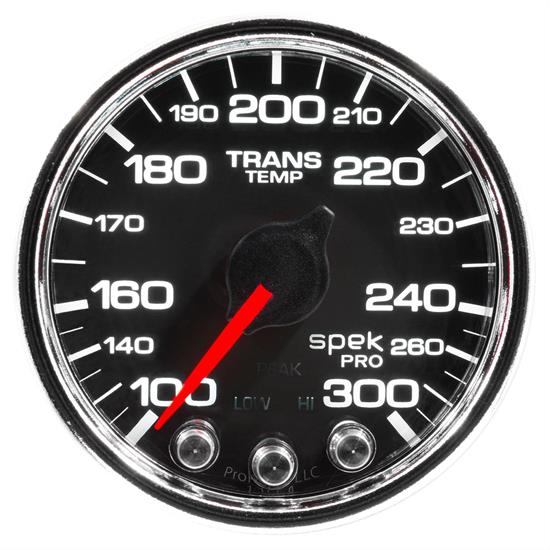

AutoMeter P34231 Spek-Pro Trans Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34231 Spek-Pro Trans Temp Gauge,2-1/16,100-300,Domed

AutoMeter P34231 Spek-Pro Trans Temp Gauge,2-1/16,100-300,Domed

Universal Fit, 2.05" Body Diameter, 100-300 °F Gauge Range, Electric Gauge Type, Black, Chrome

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AutoMeter P34231 Spek-Pro Trans Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34231 Spek-Pro Trans Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34231 Spek-Pro Trans Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34231 Spek-Pro Trans Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34231 Spek-Pro Trans Temp Gauge,2-1/16,100-300,Domed
X
AutoMeter P34231 Spek-Pro Trans Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34231 Spek-Pro Trans Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34231 Spek-Pro Trans Temp Gauge,2-1/16,100-300,Domed
Zoomed In Image
We estimate this item will ship on or before December 26th.
Part # 182P34231
$207.99
$209.95
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for AutoMeter to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Overall Diameter:
2.36"
Body Diameter:
2.05"
Gauge Range:
100-300 °F
Gauge Type:
Electric
Gauge Face Color:
Black
Bezel Finish:
Chrome
Lighting Type:
LED
Includes Wire Harness:
Yes
Includes Mounting Bracket(s):
Yes
GTIN Code:
046074153471
Lens Style:
Domed
Bezel Style:
Round Shoulder
Pointer Color:
Fluorescent Red
Includes Sensor Unit:
Yes

Info

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, Auto Meter’s Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. Auto Meter’s most advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.

  • 7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer.
  • Configurable "High" and "Low" warnings using three on-instrument-face buttons
  • Pro-Control output enables a 1.5 amp load to activate a relay and trigger your choice of warning lights, external buzzers, fans, pumps, or features such as water/meth/nitrous injection.
  • Features a peak recall function, which enables the user to review high gauge readings. The highest reading will be stored by the gauge until it is cleared.
  • Solid-state data acquisition grade sending units provide unmatched gauge accuracy and withstand the harshest environments.
  • Includes patented light-weight, spin-on bracket and pre-wired harness for simplified installation.
  • Patented Wide Angle dial design provides the largest viewable dial available in a 2-1/16" gauge.
  • Precision 280° brushless stepper motor movement provides a quiet, fluid, and accurate pointer movement with superior dial resolution.

Installation Instructions (PDF)

Installation Instructions (PDF)

Installation Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
