Auto Meter DL1045U DashControl OBDII Display, GM Full Size Truck, Diesel
07-14 Silverado 2500 HD, 07-14 Sierra 2500 HD, 07-14 Silverado 3500 HD, 07-14 Sierra 3500 HD
- This item ships directly from the manufacturer. It may take an additional 4 business days for Auto Meter to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

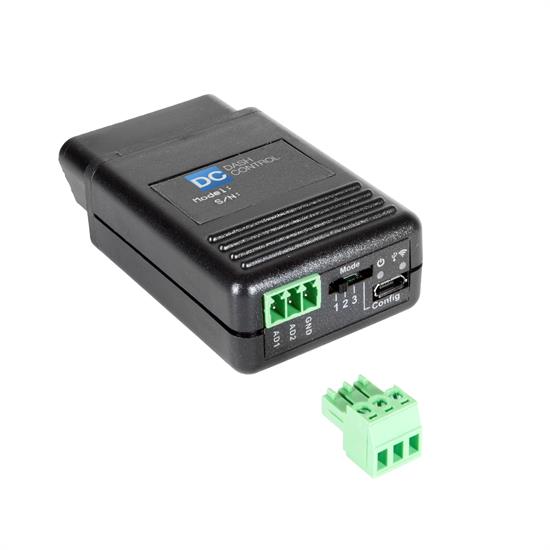

Auto Meter’s remarkable DashControl™ utilizes your vehicle’s factory display(s) to provide performance information without modification. Available for certain vehicles with a Driver Information Center (DIC), DashControl™ plugs into the OBDII port and “hijacks” these displays, allowing you to monitor parameters from the vehicle’s data bus. Customize the display pages to display what you want, where you want it. Because there is no modification to any of the vehicle’s computer systems, it’s 100% warranty friendly and reversible simply by unplugging the device. It’s the easiest, most integrated solution for gauges yet, and takes only seconds to install. DashLogic offers customizable alerts as well. Water temp getting too hot or oil pressure dropping? DashControl™ can activate your factory warning chime and display an alert in the DIC at any value you set. Customization is incredibly easy using our intuitive configuration software. Better still, the system is expandable to add up to two additional analog inputs for parameters not monitored by your vehicle’s computer systems.
- Take control of your vehicle instruments to unlock hidden performance info!
- Display missing data your vehicle computer already knows - AFR, boost, temps, pressures, HP/TQ and more!
- Your data, the way you want to see it - fully customize layouts with free DashControl software!
- Improve on factory performance alerts by programming on screen text messages for alarm points and combine with a trigger to activate the vehicle's audible chimes for a fine tuned display that's specific to your driver displays.
- Add up to two additional analog sensor inputs for those couple additional engine parameters you may want to see that are not readily available on the factory CANbus network.
- Great alternative to add-on instruments and displays, that won't affect the vehicle's interior appearance (or attract thieves) while keeping the driver's line of sight clear and dash space open. Ideal for 'sleeper' projects and track days!
- 100% warranty friendly - Completely reversible by simply unplugging the module from the vehicle.
- Supported Display Control: DIC, HUD
