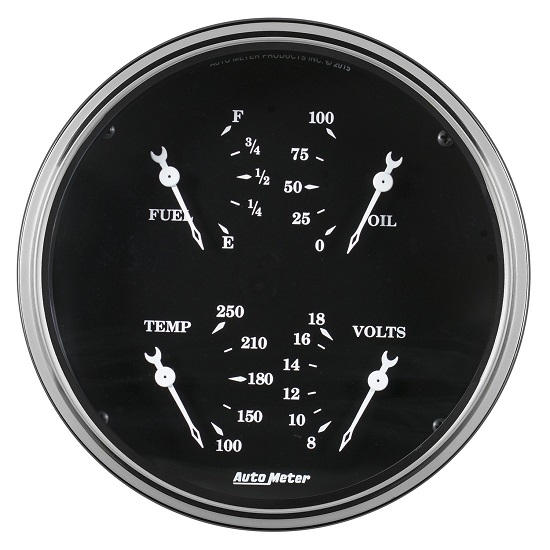

Auto Meter 1710 Old Tyme Black, 5" Quad Gauge

Sometimes space is limited. The Auto Meter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual Auto Meter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with Auto Meter’s 3262 fuel level sender).

• Includes bulb and socket assembly with red and green bulb covers
• Traditional incandescent lighting illuminates around the perimeter of the dial
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• Auto Meter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

Auto Meter 1710 Instructions (PDF)
