#120VN506007

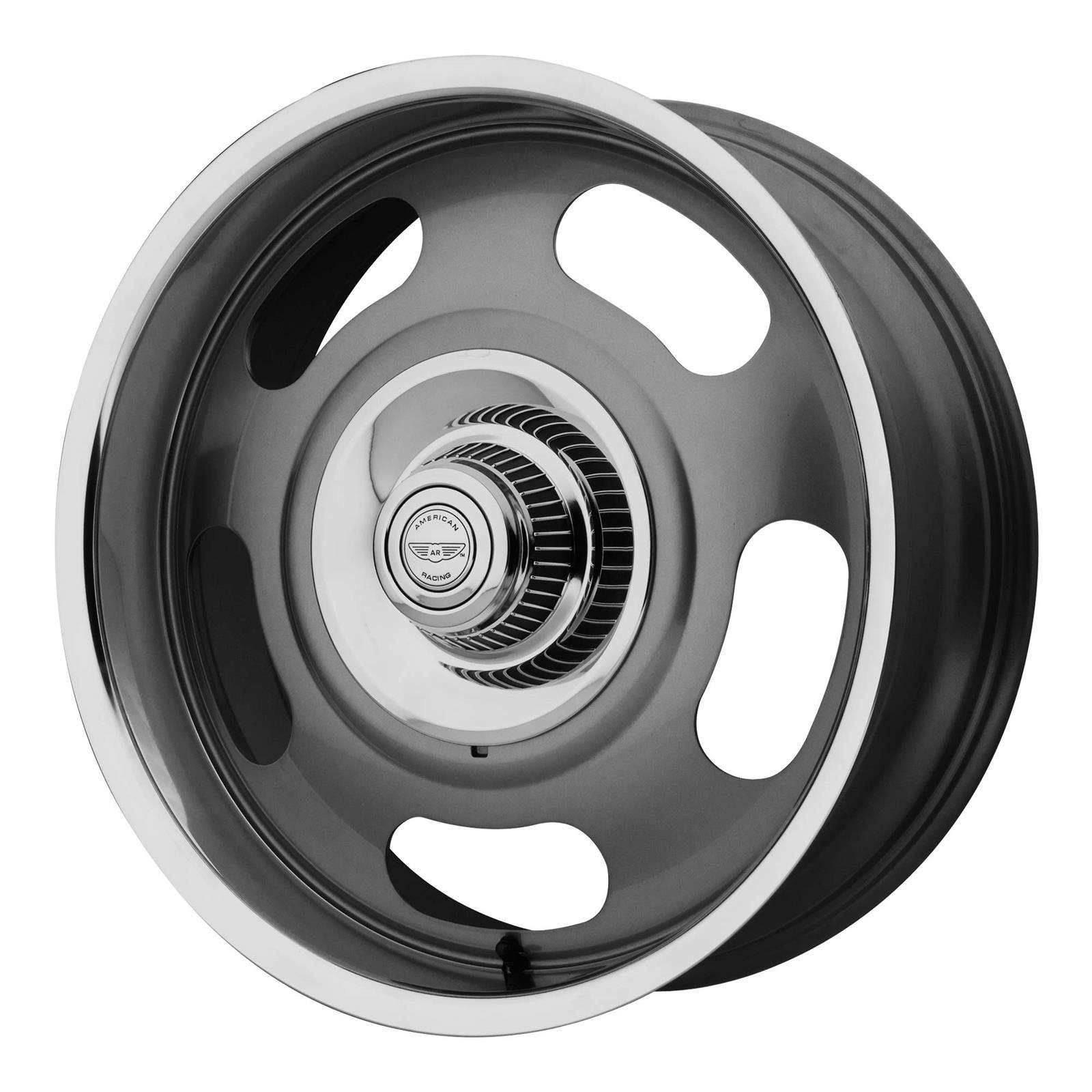

American Racing VN50629506400 Rally One-Piece Series Wheel,20x9.5
$330.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Wheel Diameter | 20 Inch |
| Width | 9.5" |
| Wheel Bolt Pattern (in.) | 5x4.75 in. | 5x5 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm | 5x127 mm |
| Wheel Backspace | 5.25" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAmerican Racing VN50629506400 Details
American Racing VN50629506400 Details
Four-barrel carburetor, four-speed manual, dual exhausts...and a set of American Racing Wheels have always been the essential ingredients for speed. Few brands have the heritage and pedigree of American Racing's 5-spoke designs, making them the perfect addition to any all-American hot rod or muscle car. American Racing Wheels has created new designs that build upon that legacy, with your modern muscle, pony car or truck in mind. With classic American styling weaved into dozens of styles and hundreds of fitments, you'll no doubt find a set that makes a statement.
- Features a Matte Finish
- Wheel diameter of 20 inches with a width of 9.5 inches
- Made from Cast Aluminum
- 1-year warranty on wheel finish
Guides & Documents
American Racing VN50629506400 Specifications
American Racing VN50629506400 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | VN50629506400 |
| Brand | American Racing |
| Wheel Diameter | 20 Inch |
| Width | 9.5" |
| Wheel Bolt Pattern (in.) | 5x4.75 in. | 5x5 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm | 5x127 mm |
| Wheel Backspace | 5.25" |
| Wheel Material Type | Cast Aluminum |
| Wheel Offset | 0 mm |
| Wheel Backspace Range | 5.000" - 5.499" |
| Finish | Matte |
| Color | Gray |
| Beadlock Included | No |
| Material Type | Cast Aluminum |
| Bolt Pattern | 5 on 4.75" | 5" |
| GENERAL | |
| DOT-Approved | Yes |
| Weight | 32 lbs. |
| Load Capacity | 2500 lbs. |
| Notes | Mag Gray Center With Polished Lip |
| Valve Stem Included | No |
| GTIN Code | 885463246819 |
| Lug Nut Seat Style | 60 Degree Conical |
| Center Cap Included | Yes |
| Warranty | 1-year on wheel finish |
| Lug Nuts Included | No |
| Offset | 0" |
