#6174224

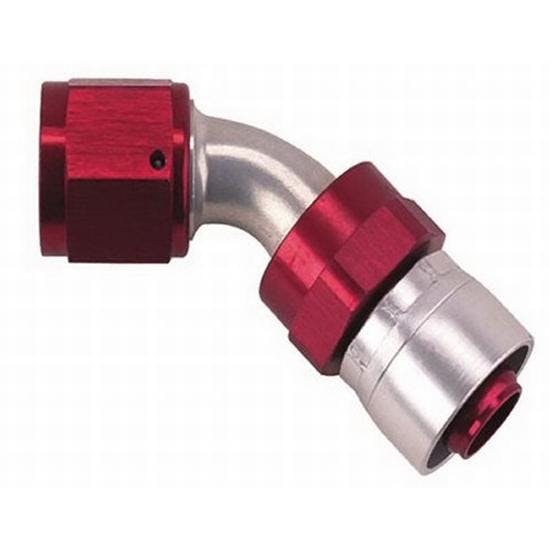

Aeroquip FBM4224 Starlite Crimp Fitting, 45 Degree, -10 AN
$39.59
each
In Stock
$53.99
Save $14.40
Add to a list
Share
Product Summary
Universal Fit, -10 AN Fitting Hose Size, Aluminum
See more details
Key Specs
| Fitting Hose Size | -10 AN |
| Angle | 45 degree |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Red/Silver |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAeroquip FBM4224 Details
Aeroquip FBM4224 Details
Aeroquip's incredible Starlite racing hose and fittings are up to 45% lighter than stainless steel braided hose and reusable fittings. Can be used with fuel, lube and coolants. Working temperature is -45° to +300°F and have a 200 psi working pressure.
Starlite hose can be used with either crimp style or reusable hose fittings. Crimp style fitting must be used only with Starlite hose and installed by qualified personnel using an Aeroquip ProCrimp 1380 crimping machine.
There are only two ways to order these fittings and hose:
- Bring or mail us your old hose to match
- We will send you the fittings and hose you think will work. You cut the hose to length and send it back to us for crimping
Charts
Guides & Documents
Aeroquip FBM4224 Specifications
Aeroquip FBM4224 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | FBM4224 |
| Brand | Aeroquip |
| Fitting Hose Size | -10 AN |
| Angle | 45 degree |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Red/Silver |
| GENERAL | |
| Fitting Style | Non-Swivel |
| Assembly Method | Crimp |
| Fitting End A | -10 AN Female |
| Fitting End B | -10 AN Hose |
| Reusable | No |
| Hose Style | Aeroquip Starlite Hose |
| Thread Pitch | 7/8" - 14 |
| Pressure Rating | 200 lbs |
| GTIN Code | 678146118929 |
| Sold in Quantity | Each |
