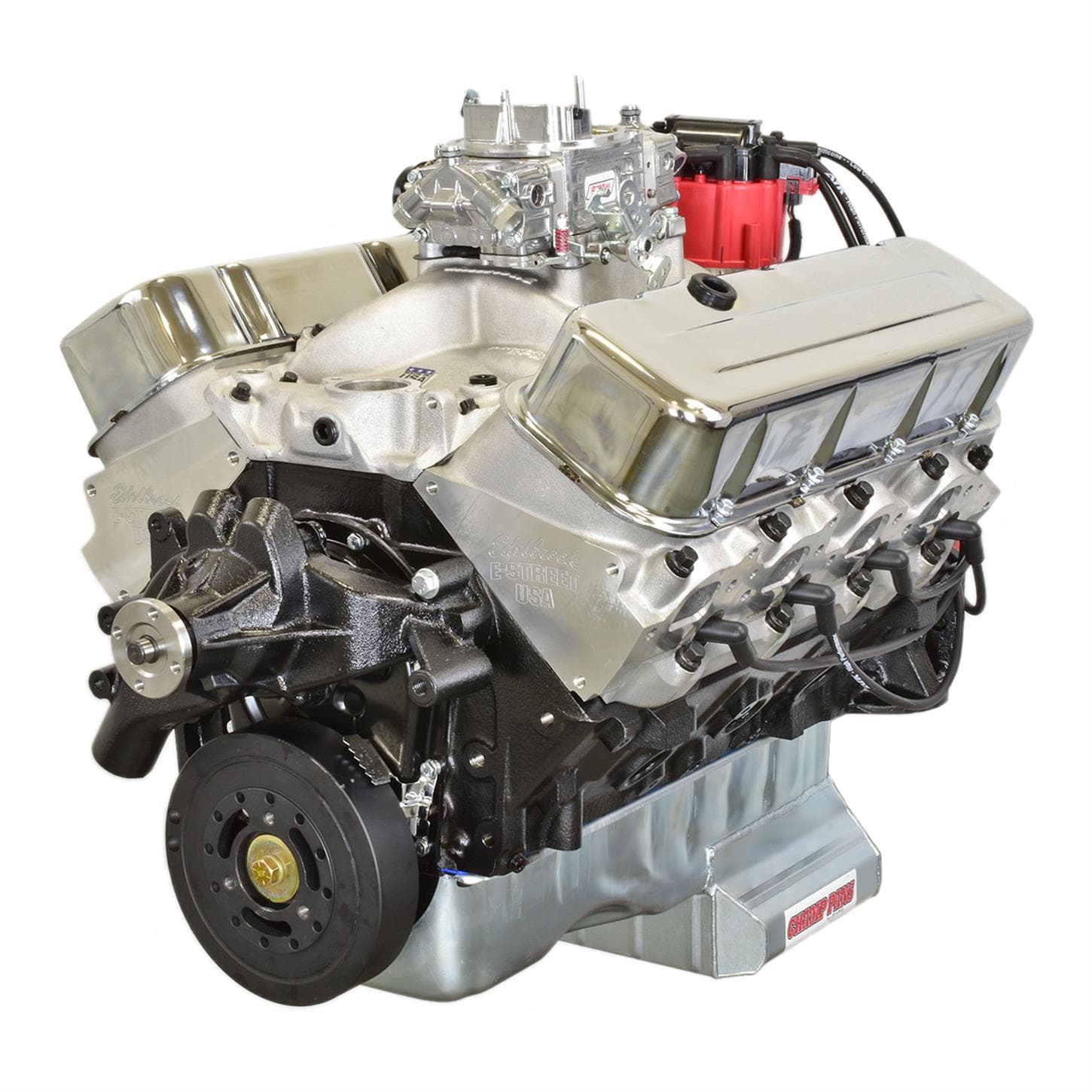

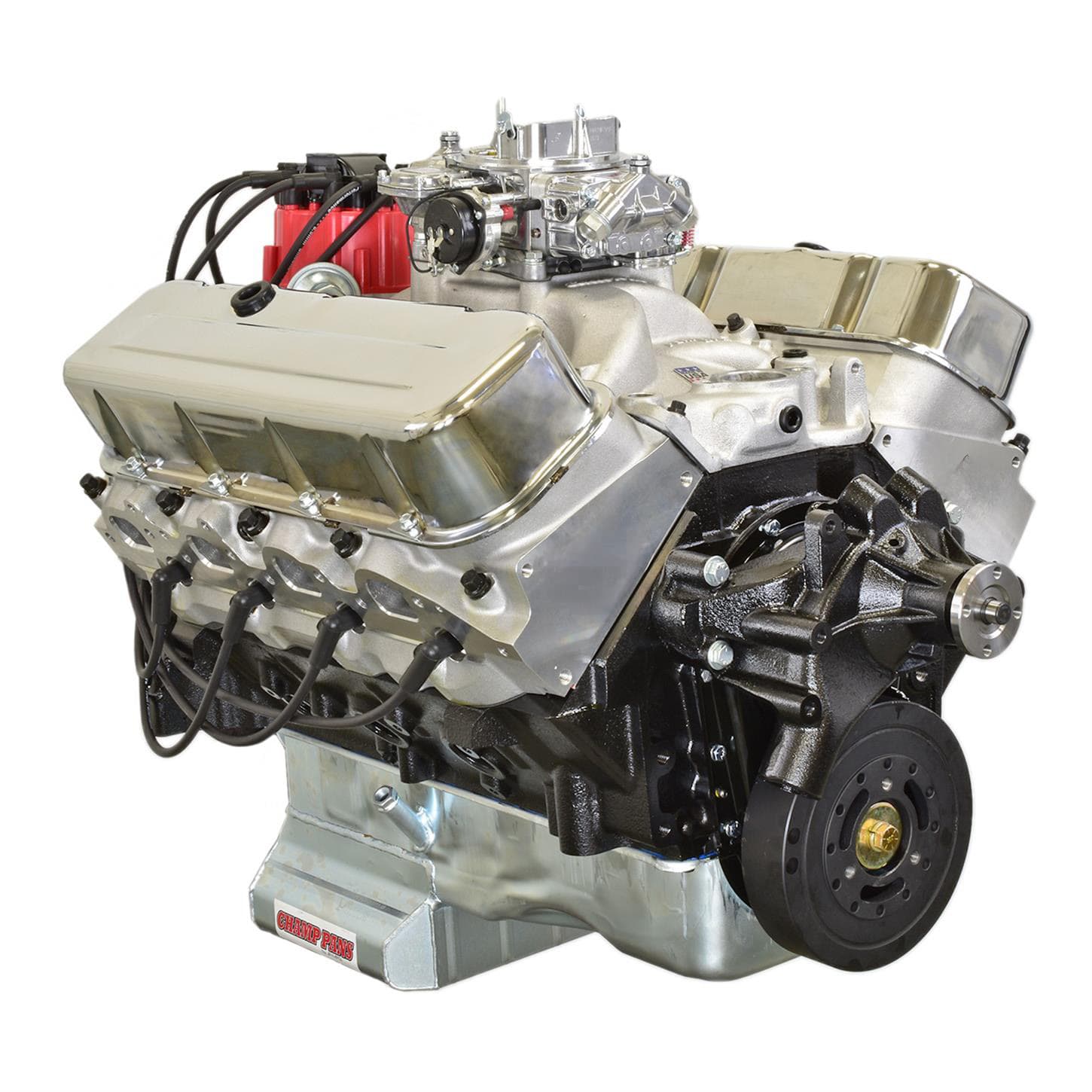

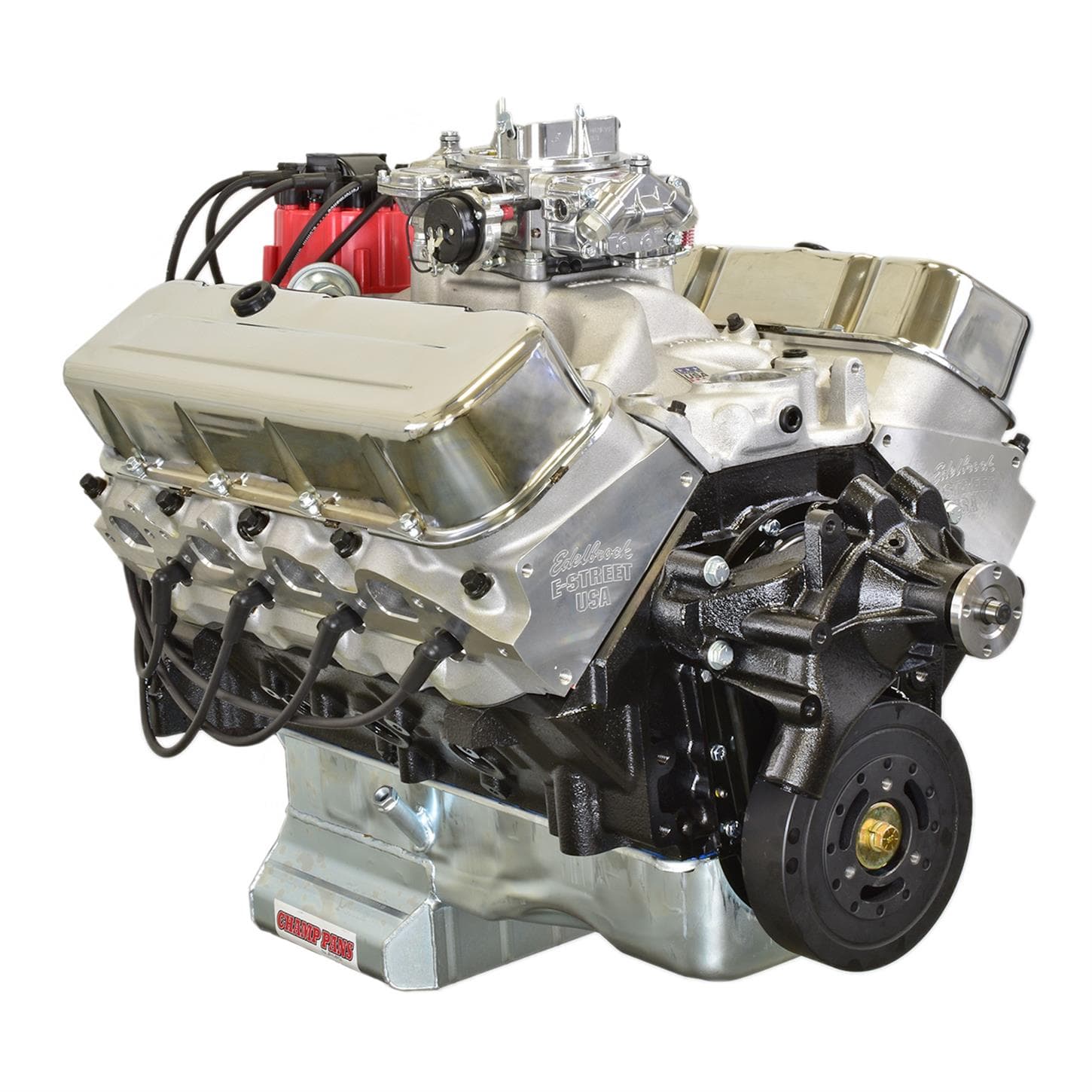

ATK HP451PC Chevy 454 Complete Engine 525HP

$275 Shipping

#35020229

ATK HP451PC Chevy 454 Complete Engine 525HP

Block: Seasoned 6.0L Iron Gen IV
Bore/Stroke: 4.030” x 4.000”
Displacement (cu.in): 408

Level Of Dress:

#3 Complete Dress

$9,199.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Long Block Crate Engine Type, 9.9:1 Compression Ratio

Block: Seasoned 6.0L Iron Gen IV
Bore/Stroke: 4.030” x 4.000”
Displacement (cu.in): 408
Crankshaft: Manley 4340 forged 24 tooth reluctor wheel
Rods: Manley 4340 forged H beam 6.125” ARP 8740 bolts

See more details

Key Specs

Crate Engine Type	Long Block
Engine Displacement	7.4 liters
Compression Ratio	9.9:1
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

ATK Engines HP451PC Details

Engine Specifications:

HP: 525

TQ: 550

Block: OE block 1991-1995 Gen V 4 bolt main 1pc seal (NO MECHANICAL FUEL PUMP PROVISION)

Bore/Stroke: up to 4.310” x 4.000”

Displacement: 454

Crankshaft: OE Reground external balance

Rods: OE powder metal 6.135”

Pistons: Forged 9.9:1 compression

Rings: Moly

Camshaft: Hyd. roller

Cam Specs: 225/235 @50 .595in/.601ex 112LSA

Timing Chain: Double roller

Cylinder Heads: Edelbrock aluminum E-street 110cc/290cc 2.19/1.88

Rocker Arms: Billet aluminum 1.7 ratio

Oil Pan: Rear sump

Oil Pump: Melling high volume

Balancer: PowerBond external balance 8” #PB1451-N

Flexplate/Flywheel: Pioneer #FRA-321 external balance 168 tooth

Intake Manifold: Edelbrock performer RPM dual plane #7161

Distributor: HEI (Iron gear)

Water Pump: OE long pump

Carburetor: Quick Fuel 780CFM vacuum secondary’s with electric choke #HR-780

Fuel Pump: No mechanical fuel pump provision, must run an electric pump

Spark Plugs: Autolite #3923

Spark Plug Wires: 8mm

Engine Info:

Oil: Conventional / Non Synthetic 10W30 with Comp Cam zinc additive #159 for first 3000 miles

Oil Filter: Wix or K and N per application

Timing: 34-36 Degrees

Spark Plug Gap: .035”

Firing Order: 18436572

Octane: 91+

Stall Converter: 2200-2500

Exhaust: 1 5/8 Headers

Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. . ATK reserves the right to substitute parts used in engines if necessary.

Guides & Documents

Warranty (ATK Engines)

Technical Information (ATK Engines)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA Prop 65

CARB warning

ATK Engines HP451PC Specifications

KEY SPECS
MFG. Part #	HP451PC
Brand	ATK Engines
Crate Engine Type	Long Block
Engine Displacement	7.4 liters
Compression Ratio	9.9:1
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Carburetor Included	Yes
Intake Manifold Included	Yes
Distributor Included	Yes
Valve Covers Included	Yes
Engine Balance	External
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	No
Oil Pan Included	Yes
Timing Cover Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Flexplate Included	Yes
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	No
Wiring Harness Included	No

GENERAL
Assembled	Yes
Material Type	Cast Iron
Sold in Quantity	Each
Crate Engine Family	Chevy Big Block
Supercharger Included	No
