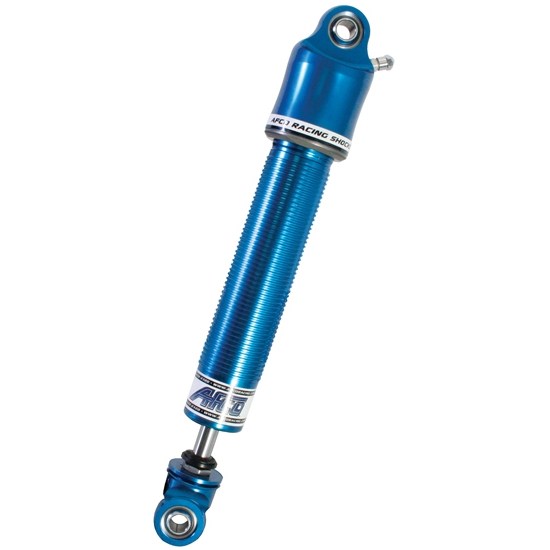

AFCO Small Body Non-Adjustable Bulb Shock
AFCO Small Body Non-Adjustable Bulb Shock

AFCO Small Body Non-Adjustable Bulb Shock

0 Reviews | 1 Answered Question
Factory Shipped
Ships FREE
AFCO Small Body Non-Adjustable Bulb Shock
AFCO Small Body Non-Adjustable Bulb Shock
Zoomed In Image
Part # 10664
Starting from
$234.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 1 business days for AFCO to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

MFG. Part #:
Select Length/Compression/Rebound to see
Shock Type:
Mono Tube
Adjustability:
Non-Adjustable
Coil-Over Compatible:
Yes
Shock Body Material:
Aluminum
Shock Body Size:
Small Body
Shock Body Type:
Threaded
Gas Pressure Adjustable:
Yes
Shock Stroke:
Select Length/Compression/Rebound to see
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Extended Length:
Select Length/Compression/Rebound to see
Compressed Length:
Select Length/Compression/Rebound to see
Body Diameter:
1.745"
Finish:
Anodized
Bushing Material:
Steel
Sold in Quantity:
Each
Notes:
MADE TO ORDER
Bulb Diameter:
2.30"
Thread Length:
Select Length/Compression/Rebound to see
Shock Eyelet Width:
Select Length/Compression/Rebound to see
Bolt Hole Circle:
.500"
Hardware Included:
No

Info

AFCO Racing Products releases the most versatile small body shock in the industry today.  Each shock is hand crafted & DYNO tested in Boonville, IN.  Engineered to maximize low speed control and grip this shock features a low friction, high temperature sealing system. A second feature integrated into the design was a larger main piston, deflective disc base valve and increase gas chamber to enhance lap after lap performance, stability. Many fixed valve shock options to choose from.
  • Superior Base Valve Design
  • Maximum torsion bar arm clearance
  • Low gas pressure
  • Minimal rod pressure gain
  • Rebuildable/revalvable
  • Standard valved shocks
  • Linear and Digressive Piston Design
Some parts are not legal for use in California or other states with similar laws/regulations
