Add to Cart
$299.99

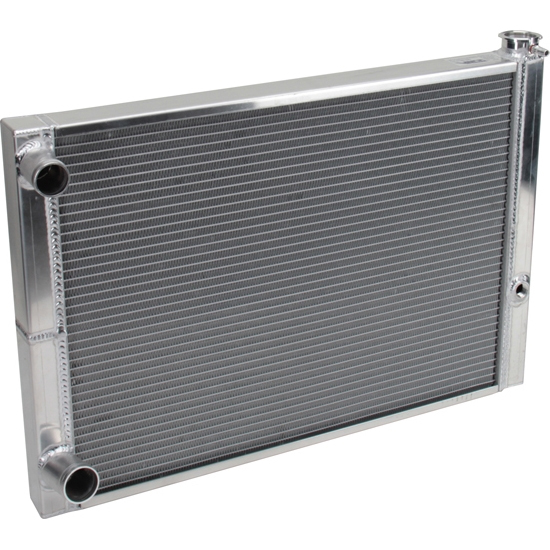

AFCO 80185FNDP Dirt Late Model Lightweight Double Pass Radiator
AFCO 80185FNDP Dirt Late Model Lightweight Double Pass Radiator

AFCO 80185FNDP Dirt Late Model Lightweight Double Pass Radiator

Dirt Late Model, Double Pass Radiator Style, Aluminum, Upper Left Inlet Location, Natural

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 80185FNDP Dirt Late Model Lightweight Double Pass Radiator
AFCO 80185FNDP Dirt Late Model Lightweight Double Pass Radiator
Zoomed In Image
We estimate this item will ship on or before September 26th.
Part # 10680185FNDP
$299.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 1 business days for AFCO to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Radiator Style:
Double Pass
Material Type:
Aluminum
Inlet Location:
Upper Left
Outlet Location:
Lower Left
Overall Width Range:
27.00" to 27.99"
Overall Width:
27.5"
Overall Height Range:
20.00" to 20.99"
Overall Height:
20"
Overall Thickness:
2"
Core Width Range:
24.00" to 24.99"
Core Width:
24"
Core Height Range:
19.00" to 19.99"
Core Height:
19"
Core Thickness:
1.5"
Finish:
Natural
Transmission Cooler:
No
Shroud Included:
No
MFG. Part #:
80185FNDP
Outlet Size:
1.75
Sold in Quantity:
Each
Fan Included:
No

Info

AFCO Racing is proud to announce the new series of 19” x 27-1/2” lightweight double pass radiators. This is the easiest and most cost effective way to shave as much as 10 pounds off the front of your dirt Late Model, allowing you to concentrate ballast and improve handling. The radiator features a new 1.5” thick core for improved air-flow. These race proven lightweight radiators fit like a standard radiator and installation is simple with no major modifications needed for mounting. All AFCO Radiators are 100% TIG-welded with no epoxy used and are 100% pressure tested.

  • Features an increased number of tubes and fins in the same height package
  • Optimum fin per inch ratio promotes maximum cooling
  • Standard water pressure bung for easy plumbing
  • 1-1/2” left hand inlet, 1-3/4” left hand outlet
  • 20” overall height
  • 24” core width
  • 18-3/4” tank height
  • 27-1/2 tank width
  • 2” tank thickness
  • 10 lbs. dry weight
Some parts are not legal for use in California or other states with similar laws/regulations
