AFCO 80177 Electric Cooling Fan, 16 Inch S-Blade

-5%

#10680177

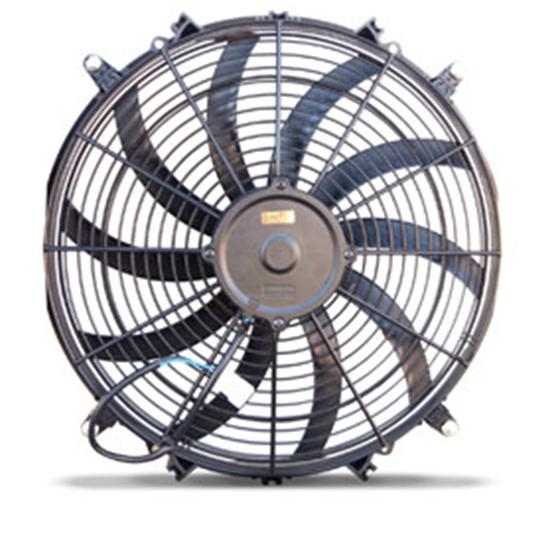

AFCO 80177 Electric Cooling Fan, 16 Inch S-Blade

Name: AFCO 80177 Electric Cooling Fan, 16 Inch S-Blade
Brand: AFCO
SKU: 10680177
Price: 189.99 USD
Availability: InStock
Rating: 4.9 (7 reviews)

7 Reviews

4 Questions

Fans are made from glass-filled nylon and are rated at zero static
They are also reversable, so it can be used as a puller or pusher
Has a low amp draw and can be mounted in front or rear of radiator

Fan Diameter:

16 Inch

10 Inch12 Inch 14 Inch

$189.99

/each

In Stock

$200.99

Save $11.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Single Fan Quantity, CW/CCW Rotation

Fans are made from glass-filled nylon and are rated at zero static
They are also reversable, so it can be used as a puller or pusher
Has a low amp draw and can be mounted in front or rear of radiator
Has a 3.25" depth at motor and draws 17.7 amps
It has 10 blades and features an all nylon construction

See more details

Key Specs

Fan Diameter	16 Inch
Maximum Fan CFM	2170 CFM
Fan Flow Type	Reversible
Rotation	CW/CCW
Blade Material	Nylon

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 80177 Details

These fans offer the best CFM vs. AMP draw of any electric units we have tested. All fans are made from glass-filled nylon and are rated at zero static. Each fan is also reversable, so it can be used as a puller or pusher.

To reverse the fan, the fan blade can be flipped or the wires can be reversed.

Fan Features:

Low amp draw
Mount in front or rear of radiator
Thin design
Reversible - push/pull
3.25" depth at motor
17.7 Amp
2170 CFM

Catalog Correction: These fans DO NOT include an on/off switch.

Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.

Guides & Documents

How to Choose the Best Electric Radiator Fan | Size & Setup Guide

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AFCO 80177 Specifications

KEY SPECS
MFG. Part #	80177
Brand	AFCO
Fan Diameter	16 Inch
Maximum Fan CFM	2170 CFM
Fan Flow Type	Reversible
Rotation	CW/CCW
Blade Material	Nylon
Depth	3.250"

GENERAL
Fan Quantity	Single
Blade Style	Curved
Blade Count	10-blade
Blade Finish	Natural
Blade Color	Black
Hub Material	Nylon
Hub Finish	Natural
Hub Color	Black
Voltage	12 volts
Hardware Included	Yes
Sold in Quantity	Each
Notes	Will work as a pull fan in a clockwise direction, push type in a counterclockwise direction.

Ratings & Reviews

4.9

7 Reviews

Overall Assessment

Customers view the fan as a high-quality, practical solution for their cooling needs, with excellent performance in pushing/pulling air efficiently, thus making it ideal for a variety of tough applications, like powering hydraulic crane cooling systems. It's noted for its exceptional fit and easy installation, proving it as user-friendly. Material quality is also applauded, demonstrated by repeated purchases. Crucially, the fan's superior cooling ability, even in high-performance contexts, sets it above rivals. A significant advantage is its competitive pricing, offering the same quality as pricier factory models.

Write A Review

4.9

7 reviews

Filter by Ratings

Sort Reviews

when my next fan goes out I WILL ORDER ANOTHER ONE

5.0

5 years ago

Donnie

colorado

Verified

i ordered this fan for a hydrolic cooling fan for my crane . it is an exact match for the one i had to replace plus it was 400 dollars cheaper than the one from the factory

Would Recommend

ELECTRIC FAN

4.0

8 years ago

STEVE

VANCOUVER WA

Verified

WAS WHAT I EXPECTED EASY TO INSTALL

Would Recommend

Great fan

5.0

9 years ago

mick

Spfld,Ill

Verified

Quality made product , pulls or pushes air Great , satisfied with my purchase

Would Recommend

AWESOME FAN!!

5.0

10 years ago

JWilly

Detroit,Mi

Verified

Solved my cooling issues!! Got my big block down to a comforable running temp!!

Would Recommend

This fan moves some air, flat head really likes it.

5.0

10 years ago

Cottonrandy

Beemer, Ne and Tustin Ca

Verified

Delivered on time

Would Recommend

Very god product

5.0

12 years ago

Bjg3618

Undisclosed

Verified

Se fan has super pushing or pulling power it's in a 514 ford w itch a two tube one inch core radiator and will idle all day at 190 to 200

Would Recommend

excellent fit

5.0

12 years ago

parts6

lisbon ohio

Verified

This is the second one I have bought they work excellent be sure to get the shroud that is optional

Would Recommend

Showing 7 of 7 reviews

Questions & Answers

4 Questions • 5 Answers

Sort Questions

The depth at motor is 3.25", What is the depth at the fan itself?

by Chopped41ford

• 4 years ago

1 answer

View Answer

Do you sell a pigtail for this fan ? If you do what is the art number ?

by Bill

• 9 years ago

1 answer

View Answer

Is the CFM the same in both directions? I have heard that pulling CFM is usually greater than pushing CFM is that true? I want to use this fan as a pusher in front of my radiator along with my stock fan attached to the water pump as a puller. I am using an aluminum radiator on my 52 Chevy pickup with a 6 Cylinder engine.

by Fyerman

• 12 years ago

1 answer

View Answer

what is cfm no. and amps

by midstates

• 13 years ago

2 answers

View Answers

4 of 4 questions shown
