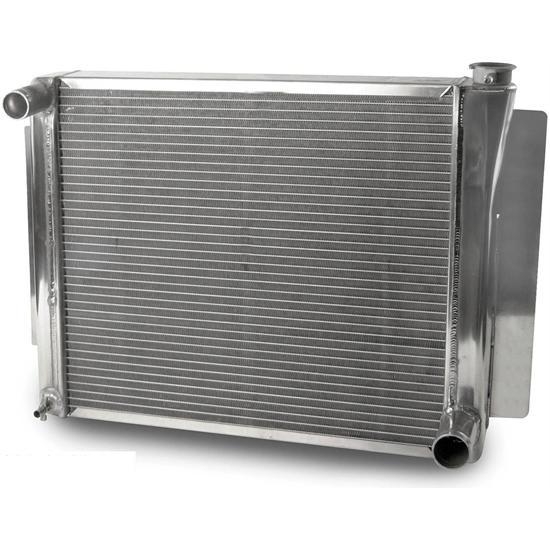

AFCO 80127NPZ GM Pol. Performance Aluminum Radiator, 24-1/4 x 19 Inch
AFCO 80127NPZ GM Pol. Performance Aluminum Radiator, 24-1/4 x 19 Inch

AFCO 80127NPZ GM Pol. Performance Aluminum Radiator, 24-1/4 x 19 Inch

65-67 Gran Sport, 62-68 Chevy II, 69-72 Nova, 71-74 Challenger, 70-74 Barracuda, Aluminum

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 80127NPZ GM Pol. Performance Aluminum Radiator, 24-1/4 x 19 Inch
AFCO 80127NPZ GM Pol. Performance Aluminum Radiator, 24-1/4 x 19 Inch
Zoomed In Image
We estimate this item will ship on or before October 25th.
Part # 10680127NPZ
Save 6%
$589.99
$632.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 5 business days for AFCO to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Radiator Style:
Single Pass
Material Type:
Aluminum
Inlet Location:
Upper Left
Outlet Location:
Lower Right
Row Quantity:
2
Overall Width Range:
24.00" to 24.99"
Overall Width:
24.25"
Overall Height Range:
19.00" to 19.99"
Overall Height:
19.5"
Overall Thickness:
3"
Core Width Range:
20.00" to 20.99"
Core Width:
20"
Core Height Range:
18.00" to 18.99"
Core Height:
18.06"
Core Thickness:
2.13"
Finish:
Polished
Transmission Cooler:
No
Shroud Included:
No
MFG. Part #:
80127NPZ
Inlet Size:
1.50
Tube Size:
1.00"
Tube Style:
Crossflow
Sold in Quantity:
Each

Info

With 2 rows of 1" cores, AFCO Performance Series Radiators are perfect for the street, the strip, or anything in between. These crossflow radiators can be easily adapted to many applications. They are 100% TIG welded, 100% pressure tested and use no epoxy or sealers.

  • 65-87 Grand Prix
  • 65-86 Catalina/Bonnevillle
  • 67-69 Firebird
  • 68-72 GTO/LeMans
  • 70-81 Firebird/Trans Am
  • 73-80 Grand Am
  • 65-79 Delta 88/98
  • 66-87 Cutlass/442
  • 72-77 Omega/Omega SX
  • 71-74 Impala, Biscayne, Caprice, Bel Air
  • 70-81 Camaro
  • 68-87 Chevelle/El Camino, Malibu, Monte Carlo
  • 68-79 Nova

AFCO Radiator Installation Instructions (PDF)

NOT a direct fit - measure your application. May require some modifications and/or fabricating for proper fit.

Fan/Shroud Assembly sold separately.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

Filler Location: R
Brass Drain Cock Fitting: 1/4" NPT (included)
Filler Neck Hose Barb: 1/8" Straight (included)
Dry Weight: 14.50 lbs

Notes

Features:
  • 100% Aluminum construction (no epoxy)
  • Furnace Brazed Core - 2 rows of 1" tubes
  • TIG welded by skilled craftsmen in the USA
  • Billet filler neck offers strength and higher quality appearance over stamped
  • Built-in fin covers (top & bottom) provide a great finish & aid installation
  • Drain Cock included
  • Inlets and outlets are positioned correctly for ease of flow

Specs


Some parts are not legal for use in California or other states with similar laws/regulations
