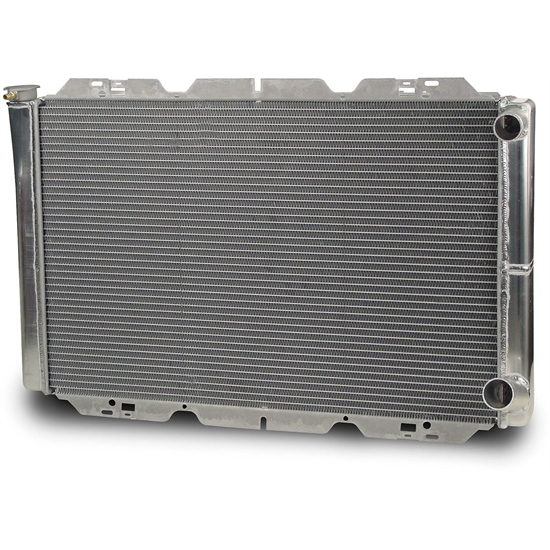

AFCO 80126N Double Pass Racing Radiator 31 Inch Wide, 1-1/2 Inch Inlet
AFCO 80126N Double Pass Racing Radiator 31 Inch Wide, 1-1/2 Inch Inlet

AFCO 80126N Double Pass Racing Radiator 31 Inch Wide, 1-1/2 Inch Inlet

1 Review | 0 Answered Questions
In Stock
Ships FREE
AFCO 80126N Double Pass Racing Radiator 31 Inch Wide, 1-1/2 Inch Inlet
AFCO 80126N Double Pass Racing Radiator 31 Inch Wide, 1-1/2 Inch Inlet
Zoomed In Image
Part # 10680126N
$249.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Radiator Style:
Double Pass
Material Type:
Aluminum
Inlet Location:
Upper Right
Outlet Location:
Lower Right
Row Quantity:
Dual
Overall Width Range:
31.00" to 31.99"
Finish:
Natural
Transmission Cooler:
No
MFG. Part #:
80126N
Overall Width:
31.00"
Overall Height:
21.00"
Overall Thickness:
3.00"
Core Height:
18.50"
Core Width:
27.38"
Filler Neck Height:
1.00"
Core Thickness:
2.25"
Inlet Size:
1.50"
Tube Style:
Crossflow
Sold in Quantity:
Each
Notes:
Tank to tank outside width is 31", Overall width measured at top of tank width is 31-3/4"

Info

AFCO Double Pass provide more cooling over standard type radiators, with less than 2 oz. of added weight.  Common temperature drops are 10-20 degrees when replacing a standard configuration radiator of equal core size.  Keeps your mind off the water temp and puts it onto the race track.

Double pass radiators gain their efficiency by first passing the fluid over the top half of the radiator and then the bottom half, giving the radiator the ability to dissipate heat twice.

AFCO uses an exclusive 360 degree TIG-welded baffle that splits the radiator core into two sections. This 360 degree baffle effectively creates two radiators out of one and assures that you wont have any coolant that has entered the radiator but never made it across the core. This is superior to utilizing silicone to seal internal baffles, or worse, a partial weld that allows the coolant to bypass the radiator core completely.

360 Degree Welded - Internal baffle ensures no "short cuts" past the baffle due to internal leaks.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance

Item Details

Filler Location: L
Outlet Angle Up/In: 30°/10°
Dry Weight: 15 LBS

31" wide outside of tank to outside of tank

31-3/4" wide at top of tank outside to outside measurement

Specs


Some parts are not legal for use in California or other states with similar laws/regulations
