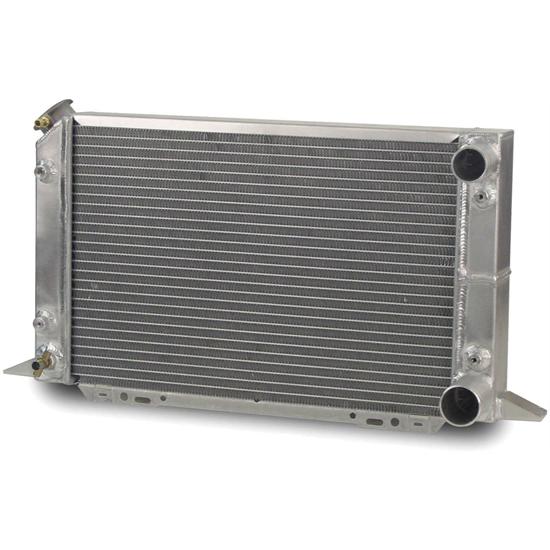

AFCO 80104N Scirocco-Style Dual Pass Radiator RH In/Outlet 1.5/1.75 OD
AFCO 80104N Scirocco-Style Dual Pass Radiator RH In/Outlet 1.5/1.75 OD

AFCO 80104N Scirocco-Style Dual Pass Radiator RH In/Outlet 1.5/1.75 OD

Universal Fit, Double Pass Radiator Style, Aluminum, Upper Right Inlet Location, 2 Row Quantity

0 Reviews | 3 Answered Questions
In Stock
Ships FREE
AFCO 80104N Scirocco-Style Dual Pass Radiator RH In/Outlet 1.5/1.75 OD
AFCO 80104N Scirocco-Style Dual Pass Radiator RH In/Outlet 1.5/1.75 OD
Zoomed In Image
Part # 10680104N
$349.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Radiator Style:
Double Pass
Material Type:
Aluminum
Inlet Location:
Upper Right
Outlet Location:
Upper Right
Row Quantity:
2
Overall Width Range:
21.00" to 21.99"
Overall Width:
21.50"
Overall Height Range:
12.00" to 12.99"
Overall Height:
12.63"
Overall Thickness:
3.00"
Core Width Range:
17.00" to 17.99"
Core Width:
17.88"
Core Height Range:
12.00" to 12.99"
Core Height:
12.63"
Core Thickness:
2.25"
Finish:
Satin
Transmission Cooler:
No
Shroud Included:
No
Inlet Size:
1.5"
Tube Size:
1.00"
Tube Style:
Crossflow
Sold in Quantity:
Each

Info

AFCO offers several versions of the popular Double Pass "Scirocco-style" radiator. Available for Ford, Chrysler, or GM applications, the all-aluminum furnace brazed design (no epoxy) provides maximum cooling protection for the most demanding door-slammers.

  • Double Pass for max. cooling in a compact, lightweight package
  • 2 rows of 1" cores
  • Sturdy TIG-welded 2" foot mounts
  • Top fin covers built in
  • Four 1/4"-20 mounting bungs
  • 1/4" brass drain cock/Stainless hardware included
  • 100% TIG welded (no epoxy)
  • Overall Height:  13-1/4"
  • Tank Height:  12-1/2"
  • Tank Width Top:  21-1/2"
  • Tank Width Bottom:  21-1/2"
  • Width with Flanges:  25-1/2"
  • Tank Thickness:  3"
  • Dry Weight:  8 lbs.
  • Fan Amp Draw:  7.7 Amp

Use with Fan & Shroud Assembly (sold separately) for max. efficiency.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

RH Inlet/Outlet, 1.5"/1.75" OD, LH Filler
