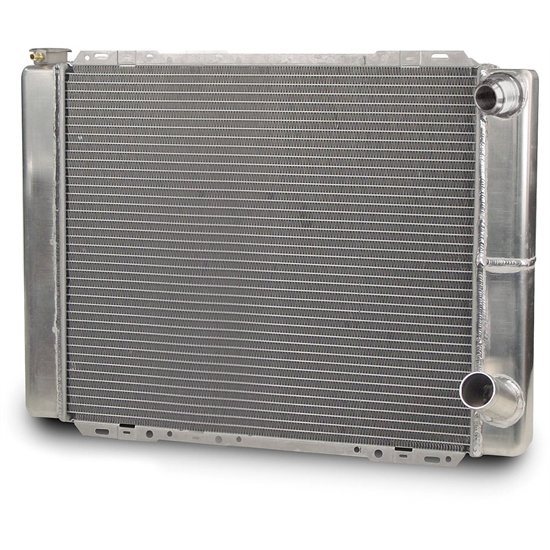

AFCO 80101NDP-16 Double Pass Radiator, 27.5 Inch, -16 AN R Side Inlet
AFCO 80101NDP-16 Double Pass Radiator, 27.5 Inch, -16 AN R Side Inlet

AFCO 80101NDP-16 Double Pass Radiator, 27.5 Inch, -16 AN R Side Inlet

Universal Fit, Double Pass Radiator Style, Crossflow Radiator Flow Direction, Aluminum, Satin

0 Reviews | 1 Answered Question
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Limited Qty
Select your vehicle to verify fitment.
Select Vehicle
AFCO 80101NDP-16 Double Pass Radiator, 27.5 Inch, -16 AN R Side Inlet
AFCO 80101NDP-16 Double Pass Radiator, 27.5 Inch, -16 AN R Side Inlet
AFCO 80101NDP-16 Double Pass Radiator, 27.5 Inch, -16 AN R Side Inlet
X
AFCO 80101NDP-16 Double Pass Radiator, 27.5 Inch, -16 AN R Side Inlet
Zoomed In Image
Part # 10680101NDP16
$299.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Designed to provide more cooling over standard type radiators, with less than 2 oz. of added weight
  • The common temperature drops are 10-20 degrees when replacing a standard configuration radiator of equal core size
  • There radiators gain their efficiency by first passing the fluid over the top half of the radiator and then the bottom half
  • Manufactured using an exclusive 360 degree TIG-welded baffle that splits the radiator core into two sections
  • Measures 20.00" in height and is 27.44" wide

Details

Radiator Style:
Double Pass
Radiator Flow Direction:
Crossflow
Material Type:
Aluminum
Inlet Location:
Upper passenger side
Outlet Location:
Lower passenger side
Row Quantity:
2
Tube Size:
1.00"
Overall Width Range:
27.00" to 27.99"
Overall Width:
27.44"
Overall Height Range:
20.00" to 20.99"
Overall Height:
20.00"
Overall Thickness:
3.19"
Core Width Range:
22.00" to 22.99"
Core Width:
22.375"
Core Height Range:
18.00" to 18.99"
Core Height:
18.44"
Core Thickness:
2.25"
Finish:
Satin
Cooling Fan:
Not Included
Transmission Cooler:
No
Shroud Included:
No
Inlet Size:
1.00
Inlet Fitting:
-16 AN Male
Fan Included:
No
Notes:
MALE -16 AN INLET"
MFG. Part #:
80101NDP-16
Sold in Quantity:
Each

Info

AFCO Double Pass provide more cooling over standard type radiators, with less than 2 oz. of added weight.  Common temperature drops are 10-20 degrees when replacing a standard configuration radiator of equal core size.  Keeps your mind off the water temp and puts it onto the race track.

Double pass radiators gain their efficiency by first passing the fluid over the top half of the radiator and then the bottom half, giving the radiator the ability to dissipate heat twice.

AFCO uses an exclusive 360 degree TIG-welded baffle that splits the radiator core into two sections. This 360 degree baffle effectively creates two radiators out of one and assures that you wont have any coolant that has entered the radiator but never made it across the core. This is superior to utilizing silicone to seal internal baffles, or worse, a partial weld that allows the coolant to bypass the radiator core completely.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

Filler Location: L
Outlet Angle Up/In: 30°/10°
Dry Weight: 13.7 LBS
-16 AN Male inlet

Specs


Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
