Product Summary

Universal Fit, Firewall Position, Brake Pedals Included

    Comes as a Kit

    Key Specs

    BrandAFCO
    PositionFirewall
    Brake System TypeDisc
    Master Cylinder Mount TypeForward
    Pedals IncludedBrake

    Need To Know

    This Product Will Ship Free

    Quick and Easy Returns

    Details

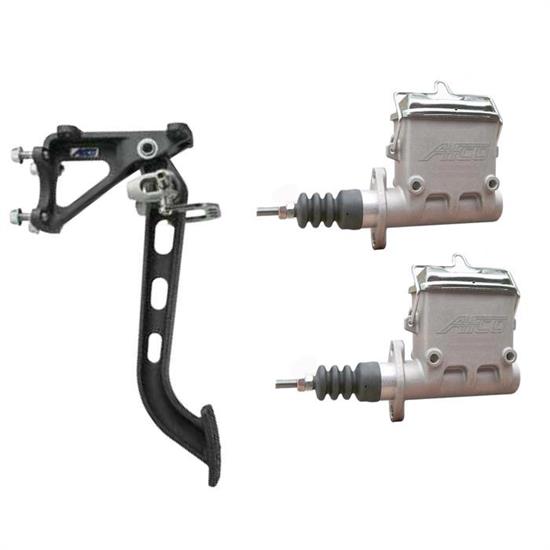

    AFCO Master Cylinders

    • 1-piece design incorporates a high-capacity reservoir and precisely machined/polished cylinder bore
    • External return spring maintains positive feel and helps prolong pad life by ensuring quick reaction to released pedal force
    • Precise fitting lid held in place by a heavy gauge retainer
    • Slim design rubber boot allows easy installation into most pedal assemblies
    • Aluminum bore with hard anodized pistons
    • Unique built-in minimum and maximum fill tabs are easy to read and make quick work of checking fluid even in dark pit areas
    • Common dual-mounting bolt patterns for most racing applications
    • Choose 3/4, 7/8, or 1" bore
    • Designed for 1/8" NPT fittings for easy replacement

    AFCO Forward Swing Single Brake Pedal

    • H-beam forged aluminum pedal design
    • Pedal assemblies fit many popular chassis
    • Allows for positioning of the clutch pedal to be away from the driver for better comfort
    • Ultra high strength bias bar on brake pedal; same strength of 7/16” bias bar in the traditional 3/8” size
    • Rounded clevis design prevents bias-bar lock-up at extreme limits of travel
    • Integral bias bearing stops prevent lock-up when adjusting bias
    • Extra coarse, industrial grade anti-skid foot pads
    • Internal hex in bias bar eases bias set up
    • 7:1 Pedal ratio allows for better braking power
    • Brake pedal weight: 2.36 lbs
    • Master cylinder studs for easy installation

    Specifications

    KEY SPECS
    BrandAFCO
    PositionFirewall
    Brake System TypeDisc
    Master Cylinder Mount TypeForward
    Pedals IncludedBrake
    GENERAL
    Master Cylinder Count2
    Outlet CountSingle
    Outlet Fitting1/8"-27 NPT
    Master Cylinder MaterialAluminum
    Reservoir TypeIntegral
    Brake Booster IncludedNo
    Balance BarYes
    Sold in QuantityKit
