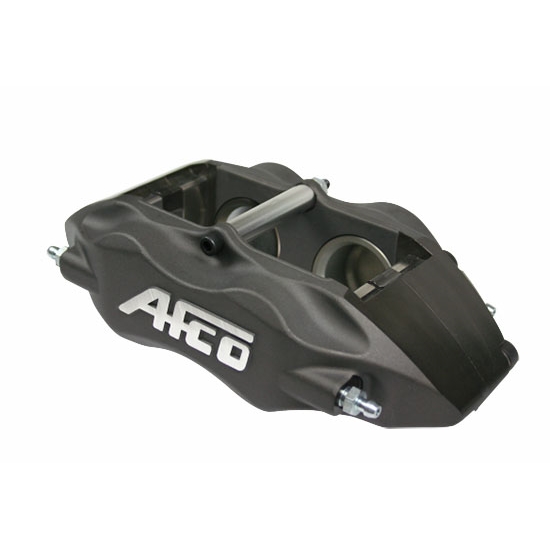

AFCO 6630081 F88 Forged Alum. Caliper, Staggered 1-3/4 Inch Piston, RH
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Garage Sale Clearance!
AFCO's F88 forged aluminum brake caliper has been produced to provide you with the best caliper in asphalt racing. This F88 caliper is 30% stiffer to give a better feel on and off the brakes to allow the least amount of drag. This F88 caliper is designed to be used with an .810" wide rotor with a 3.5" bolt pattern on the right side of the car. The caliper has 1-3/4" x 1-7/8" staggered forged pistons.
- 30% stiffer
- 1-3/4" x 1-7/8" staggered forged pistons
- Forged truly round pistons
- Right side
- Stainless steel abutment plates
- Forged caliper body
- One piece high flow bleeders (use 7/16" wrench)
- Internal cross over passages
- Extreme duty bridge bolts
