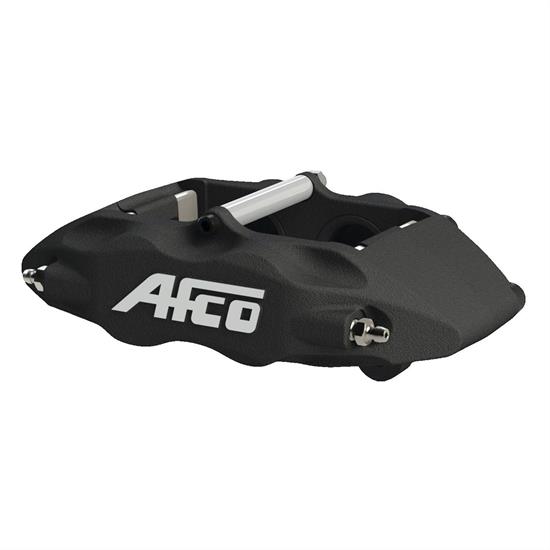

AFCO 6630030 F88 Forged Aluminum Caliper, 1.25 Rotor, 1-3/8 Pistons
AFCO 6630030 F88 Forged Aluminum Caliper, 1.25 Rotor, 1-3/8 Pistons
Universal Fit, Four Caliper Pistons, 1.38" Piston Diameter, 1.25" Rotor Thickness, Aluminum
In Stock
Ships FREE
Select Vehicle
AFCO 6630030 F88 Forged Aluminum Caliper, 1.25 Rotor, 1-3/8 Pistons
Part # 1066630030
Save 18%
$149.99
$184.99
each
Add to Cart
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Details
Caliper Pistons:
Four
Piston Diameter:
1.38"
Rotor Thickness:
1.25"
Material Type:
Aluminum
Finish:
Natural
MFG. Part #:
6630030
Color:
Gray
Centerline of Holes:
3.50"
Sold in Quantity:
Each
Info
Garage Sale Clearance!
AFCO set out in 2012 to take their market leading caliper to the next level. The previous billet calipers have been winning races over the last 10 years. With race technology improving over the years, they knew it was time to revolutionize their caliper line. After testing the new calipers all summer with multiple wins and over 5000 laps in some of the most punishing conditions, they are proud to provide their customers with the best calipers in racing. Many racers think that brakes don't matter and all calipers are created equal, but we know from testing that these calipers help win races!
- Stiffest caliper on the market
- Less brake heat
- Extra wheel clearance
- Universal mounting
- Forged 6061 aluminum construction
- 1/8" NPT inlet port
- Speed bleeders installed for quick and easy maintenance
- Heavy duty steel bridge bolts add 10% increase in stiffness
- Internal brake fluid passages
- Billet pistons with hard coat anodizing
- 3-1/2" mount spacing
- For 1.25" thick rotors
- 1-3/8" piston
NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
Some parts are not legal for use in California or other states with similar laws/regulations
