Product Summary

Universal Fit, Firewall Position, Brake Pedals Included

  • The 1-piece design incorporates a high-capacity reservoir and precisely machined/polished cylinder bore
  • An external return spring maintains positive feel and helps prolong pad life by ensuring quick reaction to released pedal force
  • Fitting lid held in place by a heavy gauge retainer
  • Has common dual-mounting bolt patterns for most racing applications
  • Features an ultra high strength bias bar on brake pedal

Comes as a Kit

Key Specs

BrandAFCO

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

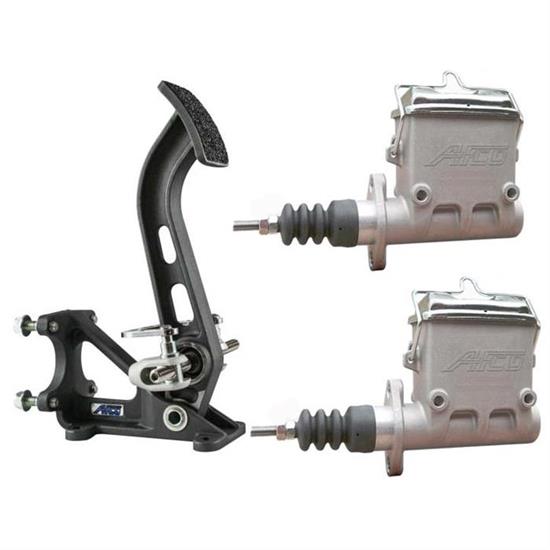

AFCO Master Cylinders

  • 1-piece design incorporates a high-capacity reservoir and precisely machined/polished cylinder bore
  • External return spring maintains positive feel and helps prolong pad life by ensuring quick reaction to released pedal force
  • Precise fitting lid held in place by a heavy gauge retainer
  • Slim design rubber boot allows easy installation into most pedal assemblies
  • Aluminum bore with hard anodized pistons
  • Unique built-in minimum and maximum fill tabs are easy to read and make quick work of checking fluid even in dark pit areas
  • Common dual-mounting bolt patterns for most racing applications
  • Choose 3/4, 7/8, or 1" bore
  • Designed for 1/8" NPT fittings for easy replacement

AFCO Forward Swing Floor Mount Dual Brake Pedal

  • H-beam forged aluminum pedal design
  • Ultra high strength bias bar on brake pedal; same strength of 7/16” bias bar in the traditional 3/8” size
  • Rounded clevis design prevents bias-bar lock-up at extreme limits of travel
  • Integral bias bearing stops prevent lock-up when adjusting bias
  • Extra coarse, industrial grade anti-skid foot pads
  • Internal hex in bias bar eases bias set up
  • 6:1 Pedal ratio
  • Brake pedal weight: 2.20 lbs
  • Master cylinder studs for easy installation

Specifications

KEY SPECS
BrandAFCO
GENERAL
PositionFirewall
Brake System TypeDisc
Master Cylinder Mount TypeForward
Pedals IncludedBrake
Master Cylinder Count2
Outlet CountSingle
Outlet Fitting1/8"-27 NPT
Master Cylinder MaterialAluminum
Reservoir TypeIntegral
Brake Booster IncludedNo
Balance BarYes
Sold in QuantityKit
