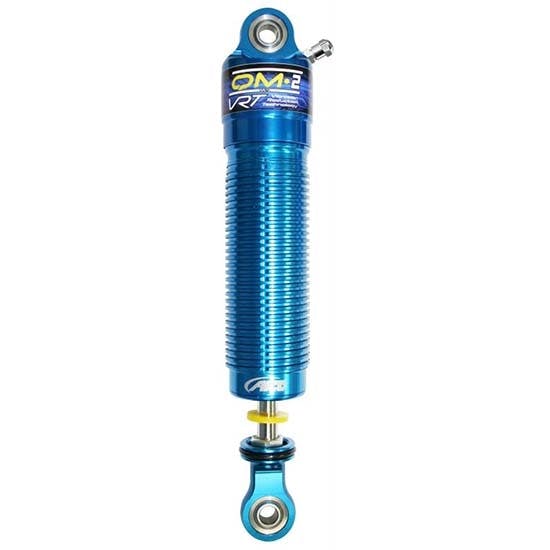

AFCO 52 Series Quarter Midget Shock w/ Schrader Valve

Name: AFCO 52 Series Quarter Midget Shock w/ Schrader Valve
Brand: AFCO
SKU: 106524

Write a Review

Ask a Question

Compression:

Select a compression

Rebound:

Select a rebound

Rod End:

Select a rod end

Starting from

$189.99

each

Factory Shipped

$224.99

Save $35.00

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Quarter Midget, Twin Tube Shock Type, Anodized

See more details

Key Specs

Shock Type	Twin Tube
Shock Body Material	Aluminum
Shock Body Type	Threaded
Shock Stroke Range	2.00" to 2.99"
Compression Valving	Select Compression, Rebound and Rod End

See more specs

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

AFCO's second generation Quarter Midget Shock: QM2 is here! This shock contains a shrader valve and is jam-packed with upgrades to help you get better results on the track.

Vibration Reduction Technology (VRT) enhances driver feel & reduces fatigue
New valve codes optimized through extensive on-track testing
Near zero drag sealing system improves weight transfer & driver smoothness
Reduced hysteresis provides consistent "seat of the pants" feedback to the drivers
New & improved precision machined internal components improve shock consistency
New gas chamber components provide near zero rod pressure gain to improve driver feel
Coilover nut kit included

CA Prop 65

Specifications

KEY SPECS
MFG. Part #	Select Compression, Rebound and Rod End to see
Brand	AFCO
Shock Type	Twin Tube
Shock Body Material	Aluminum
Shock Body Type	Threaded
Shock Stroke Range	2.00" to 2.99"
Compression Valving	Select Compression, Rebound and Rod End to see
Rebound Valving	Select Compression, Rebound and Rod End to see
Upper Shock Mount	Spherical Rod End
Lower Shock Mount	Spherical Rod End
Extended Length Range	10.00" to 10.99"
Extended Length	10.5"
Compressed Length Range	8.00" to 8.99"
Compressed Length	8"
Finish	Anodized
Coil-Over Compatible	Yes
Gas Charged	Yes

GENERAL
Shock Stroke	2.50
Schrader Valve	Yes
Sold in Quantity	Each
Color	Blue
