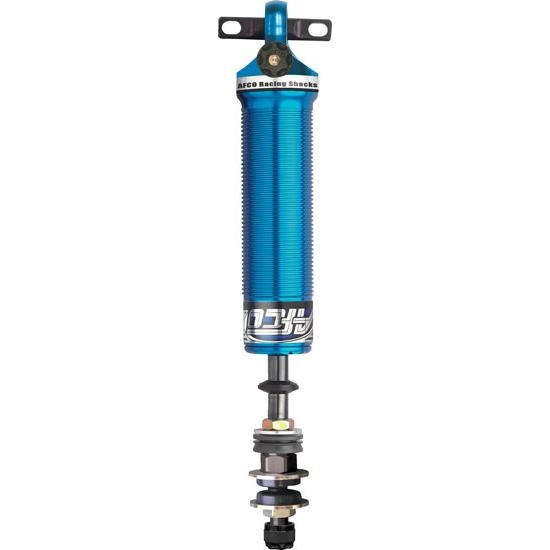

AFCO 3870R-2 Eliminator Adj. Rear Shock 7 In, Chevy/GM, 1970-81 Camaro
AFCO 3870R-2 Eliminator Adj. Rear Shock 7 In, Chevy/GM, 1970-81 Camaro

AFCO 3870R-2 Eliminator Adj. Rear Shock 7 In, Chevy/GM, 1970-81 Camaro

53-56 Chevy, 58-96 Chevy, Twin Tube Shock Type, Aluminum Shock Body Material, Rear Position

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 3870R-2 Eliminator Adj. Rear Shock 7 In, Chevy/GM, 1970-81 Camaro
AFCO 3870R-2 Eliminator Adj. Rear Shock 7 In, Chevy/GM, 1970-81 Camaro
Zoomed In Image
We estimate this item will ship on or before February 12th.
Part # 1063870R2
Add to Cart
Call to Order
Add to Buildlist

Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 18 business days for AFCO to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.


Shock Type:
Twin Tube
Shock Body Material:
Shock Body Size:
Large Body
Shock Body Type:
Shock Stroke Range:
4.00" to 4.99"
Shock Stroke:
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
Compressed Length:
Extended Length Range:
20.00" to 20.99"
Compressed Length Range:
14.00" to 14.99"
Coil-Over Compatible:
MFG. Part #:
Sold in Quantity:


AFCO Eliminator Twin Tube Adjustable REAR shocks are built specifically for drag racing. Using advanced onboard diagnostics, AFCO developed the Eliminator Series to precisely control your race car at every point on the track. With the easy-to-use, repeatable "click" settings, this shock will give you unsurpassed traction.

By allowing full control over both compression and rebound forces, Double Adjustable shocks give the tuner the ability to fine tune every aspect of the chassis movement to provide the ultimate in acceleration control and overall driveability.

  • 106-3875R2
    • Body Mount:  Tie Bar with 2.375" bolt centers
    • Shaft Mount:  9/16" Stud (3-1/8" length, 1-1/8" threads, 1-3/4" washers)
  • Lightweight aluminum construction also helps dissipate heat
  • Rebound settings are adjusted via a shaft-mounted knob with 32 clicks
  • Compression settings are adjusted via a body-mounted know with 32 clicks
  • Smooth, Ultra Low Friction rod guide
  • Low resistance allows internals to function to their fullest potential
  • Almost no "stiction" to interfere with putting the power down
  • Coil-over Ready w/ purchase of kit 106-20135D

See Applications tab for fittment.

Item Details

Double Adjustable
13.90" Comp, 20.90" Ext


Warning - The chart below is a general guide only. We highly recommend you measure your chassis for proper length and mount points before ordering.

How to Choose Shock Length (GIF)

  • '70-'81 Camaro*  -  Part # 1063875R2
  • '73 Nova Non - H.D. Rear  -  Part # 1063875F (same as '93-'02 Camaro FRONT - mounting point mods may be needed)
  • Shock also fits all Buick, Oldsmobile, and Pontiac equivalents.

(*) May need to "slot" tie bar mount.


  1. The rebound adjustment is the most critical in tuning a drag racing set-up. This adjustment allows the tuner to dial in the "un-loading action" of the chassis and keep the tires planted during the critical first 60' down the track.
  2. Double adjustable shocks are the ultimate tool in the chassis tuner's arsenal. The double adjustments of both compression and rebound dampening are completely independent - changing the setting of one has no effect on the setting of the other.
  3. Can be used as a coil-over shock with 106-20135D coil-over hardware kit (purchase separate).
Some parts are not legal for use in California or other states with similar laws/regulations
