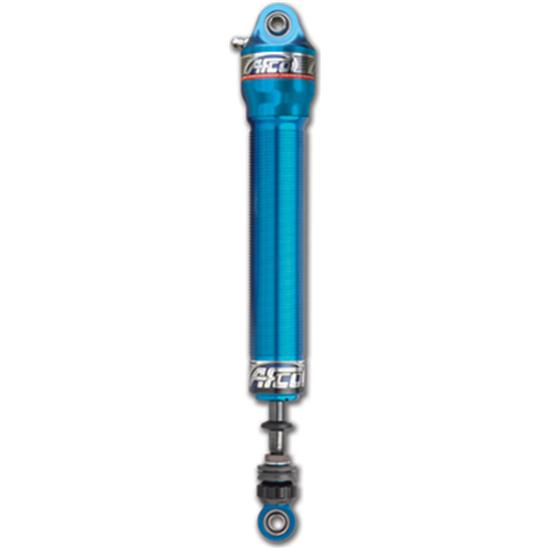

AFCO 3163FC 31 Series Big Adj Gas Shock, 7 Inch Stroke, Comp 3/Reb 4-7
AFCO 3163FC 31 Series Big Adj Gas Shock, 7 Inch Stroke, Comp 3/Reb 4-7

AFCO 3163FC 31 Series Big Adj Gas Shock, 7 Inch Stroke, Comp 3/Reb 4-7

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
AFCO 3163FC 31 Series Big Adj Gas Shock, 7 Inch Stroke, Comp 3/Reb 4-7
AFCO 3163FC 31 Series Big Adj Gas Shock, 7 Inch Stroke, Comp 3/Reb 4-7
Zoomed In Image
Part # 1063163FC
Save 5%
$329.99
$349.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Shock Type:
Mono Tube
Shock Body Material:
Aluminum
Shock Body Size:
Large Body
Shock Body Type:
Threaded
Shock Stroke Range:
6.00" to 6.99"
Shock Stroke:
6.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
21.84"
Compressed Length:
14.87"
Extended Length Range:
21.00" to 21.99"
Compressed Length Range:
14.00" to 14.99"
Compression Valving:
3
Rebound Valving:
4 - 7
Finish:
Anodized
Coil-Over Compatible:
Yes
Body Diameter:
2.16"
MFG. Part #:
3163FC
Sold in Quantity:
Each
Inside Diameter:
46 mm
Shock Eyelet Width:
.625"
Hardware Included:
No
Gas Charged:
Yes

Info

AFCO innovation provides racers with more options. The M2 Single adjustable shock brings the race proven advantages of the M2 Mono-Tube Shock to a non-canister single adjustable design. Simply put, AFCO's M2 Single gives your racecar more sensitivity, more adjustment range, more versatility, and more traction!

AFCO M2 31 Series Aluminum Body - Single Adjustable Shocks. Rebound Adjustable. 7 Inch Stroke.

All AFCO M2 shocks are 100% dyno tested, rebuildable and revalvable. Includes detailed tuning guide.

  • Compressed Length: 14.87"
  • Extended Length: 21.84"

Late Model 4-Link Gas Shock Chart (Link)

Application

  • Dirt Late Model/Crate Late Model
  • Recommended 4-Link Gas Shock
    • Fifth Coil/Torque Arm Shocks
      • Base, Slick, Rough Track Condition

Notes

  • Internal Bladder
    • Just like the more expensive M2 Double Adjustable, the M2 Single incorporates a gas charged bladder design to provide lightning fast response to high frequency shaft movement while maintaining exceptional low speed dampening control.
  • Low Friction
    • All the M2's low friction components are utilized in the single adjustable model to provide consistent fade free performance and allow the key functions of the shock to work at their maximum effictiveness.
  • Adjustability
    • The M2's unique design allows for completely independent control with absolutely no change in the fixed valve portion of the shock. The M2 Single Adjustable uses the shaft-mounted adjuster knob in rebound adjustable configurations.
Some parts are not legal for use in California or other states with similar laws/regulations
