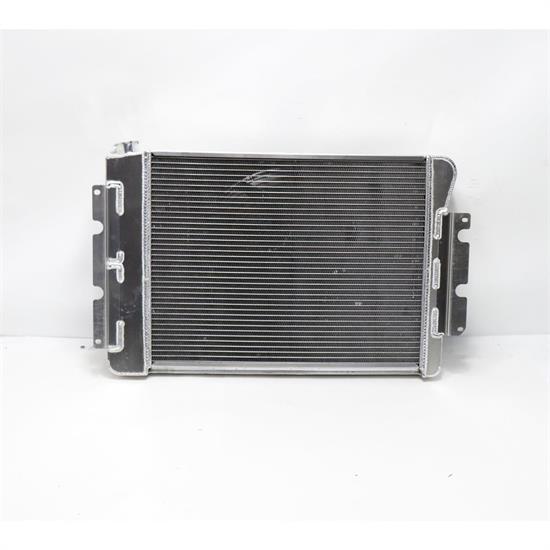

AFCO 28 x 18-3/8 Radiator, Single Fan & Trans Cooler All Satin
AFCO 28 x 18-3/8 Radiator, Single Fan & Trans Cooler All Satin

AFCO 28 x 18-3/8 Radiator, Single Fan & Trans Cooler All Satin

67-69 Chevy Camaro, 67-69 Pontiac Firebird, Crossflow Radiator Flow Direction, Aluminum, Satin

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Limited Qty
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
AFCO 28 x 18-3/8 Radiator, Single Fan & Trans Cooler All Satin
AFCO 28 x 18-3/8 Radiator, Single Fan & Trans Cooler All Satin
AFCO 28 x 18-3/8 Radiator, Single Fan & Trans Cooler All Satin
AFCO 28 x 18-3/8 Radiator, Single Fan & Trans Cooler All Satin
AFCO 28 x 18-3/8 Radiator, Single Fan & Trans Cooler All Satin
X
AFCO 28 x 18-3/8 Radiator, Single Fan & Trans Cooler All Satin
AFCO 28 x 18-3/8 Radiator, Single Fan & Trans Cooler All Satin
AFCO 28 x 18-3/8 Radiator, Single Fan & Trans Cooler All Satin
Zoomed In Image
Part # UP97039
Save 12%
$839.99
$964.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Radiator Flow Direction:
Crossflow
Material Type:
Aluminum
Inlet Location:
Upper driver side
Outlet Location:
Lower passenger side
Row Quantity:
2
Overall Width Range:
26.00" to 26.99"
Overall Width:
28"
Overall Height Range:
18.00" to 18.99"
Overall Height:
18.375"
Overall Thickness:
6"
Core Width Range:
22.00" to 22.99"
Core Width:
22.75"
Core Height Range:
18.00" to 18.99"
Core Height:
18.375"
Core Thickness:
2.25"
Finish:
Satin
Transmission Cooler:
Yes
Inlet Size:
1.5
Outlet Size:
1.75
Amperage:
17.7 amps
Fan Quantity:
Single
Fan Included:
Yes
Fan Diameter:
16 Inch
CFM:
2170 CFM
Blade Material:
Plastic
MFG. Part #:
80251-S-SS-Y
Sold in Quantity:
Each

Info

This is Garage Sale priced because it is not a part we typically keep in stock.

AFCO manufactures two different aluminum radiators for the '67-'69 Camaro/Firebird. The 10680250N and 10680251N are built with core widths of 20-7/8" and 23" respectively to match OEM specs. These radiators allow you to replace your original unit with an AFCO aluminum radiator and retain all of your existing hardware, including fan, shroud, regulator location, etc. - NO MODIFICATIONS ARE NECESSARY.

The smaller 26" wide radiator is ideal for a Small Block car with no A/C. If your car was equipped with the smaller 26" wide but you are running a high performance Small Block with air or a Big Block with air, your cooling answer is the 28" wide radiator.

  • 100% Aluminum construction (no epoxy)
  • Furnace Brazed Core - 2 rows of 1" tubes
  • Tanks are made of .080” 3003 aluminum for strength and durability
  • TIG welded by skilled craftsmen in the USA
  • Factory pressure-tested
  • Billet filler necks feature screw-in bleed – won't crack or leak with age

Instructions (PDF)

NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
