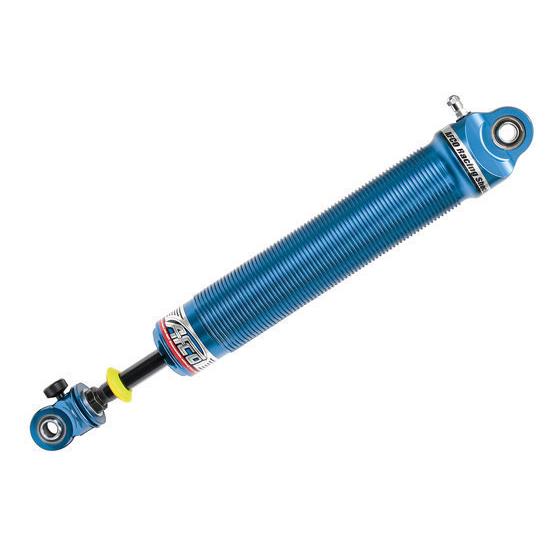

AFCO 2694-36 26 Series Large Threaded Gas Shock 9 Inch, Comp 4/Reb 3-6
AFCO 2694-36 26 Series Large Threaded Gas Shock 9 Inch, Comp 4/Reb 3-6

AFCO 2694-36 26 Series Large Threaded Gas Shock 9 Inch, Comp 4/Reb 3-6

Dirt Late Model, Pavement Late Model, Sprint Car, Mono Tube Shock Type, 4 Compression Valving

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 2694-36 26 Series Large Threaded Gas Shock 9 Inch, Comp 4/Reb 3-6
AFCO 2694-36 26 Series Large Threaded Gas Shock 9 Inch, Comp 4/Reb 3-6
Zoomed In Image
We estimate this item will ship on or before October 16th.
Part # 106269436
Save 17%
$279.99
$338.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 1 business days for AFCO to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Shock Type:
Mono Tube
Shock Adjustability:
Single Adjustable
Shock Body Material:
Aluminum
Shock Body Size:
Large Body
Shock Body Type:
Threaded
Shock Stroke Range:
9.00" to 9.99"
Shock Stroke:
9.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
23.35"
Compressed Length:
15.4"
Extended Length Range:
23.00" to 23.99"
Compressed Length Range:
15.00" to 15.99"
Compression Valving:
4
Rebound Valving:
3 - 6
Schrader Valve:
Yes
Finish:
Anodized
Coil-Over Compatible:
Yes
Rebuildable:
Yes
MFG. Part #:
26943-6
Sold in Quantity:
Each
Gas Charged:
Yes

Info

  • Gas pressure single (rebound) adjustable
  • Schrader valve/floating piston design for gas pressure tuning
  • Late Model/Crate Late Model applications
  • 9" stroke
  • 15.00" compressed length
  • 22.91" extended length

Late Model Swing Arm Gas Shock Chart (Link)

Late Model 4-Link Gas Shock Chart (Link)

Application

  • Dirt Late Model/Crate Late Model
  • Recommended Swing Arm & 4-Link Gas Shock
    • Right Rear
      • Base, Rough Track Condition
