AFCO 26 x 18-3/8 Direct Fit Radiator w/ Dual Fans, All Satin Fini
AFCO 26 x 18-3/8 Direct Fit Radiator w/ Dual Fans, All Satin Fini

AFCO 26 x 18-3/8 Direct Fit Radiator w/ Dual Fans, All Satin Fini

67-69 Chevy Camaro, Crossflow Radiator Style, Aluminum, Upper driver side Inlet Location, Satin

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 26 x 18-3/8 Direct Fit Radiator w/ Dual Fans, All Satin Fini
AFCO 26 x 18-3/8 Direct Fit Radiator w/ Dual Fans, All Satin Fini
X
Zoomed In Image
Part # UP105334
Save 5%
$929.99
$984.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Radiator Style:
Crossflow
Material Type:
Aluminum
Inlet Location:
Upper driver side
Outlet Location:
Lower passenger side
Row Quantity:
2
Overall Width Range:
26.00" to 26.99"
Overall Width:
26"
Overall Height Range:
18.00" to 18.99"
Overall Height:
18.375"
Overall Thickness:
6"
Core Width Range:
20.00" to 20.99"
Core Width:
20.75"
Core Height Range:
18.00" to 18.99"
Core Height:
18.375"
Core Thickness:
2.25"
Finish:
Satin
Transmission Cooler:
No
MFG. Part #:
80250-S-DS-N
Inlet Size:
1.5
Outlet Size:
1.75
Amperage:
15.4 amps
Sold in Quantity:
Each
Fan Quantity:
Dual
Fan Included:
Yes
Fan Diameter:
12 Inch
CFM:
2310 CFM
Blade Material:
Plastic

Info

This is garage sale priced because it is an open box item.

No Warranty, No Returns on Garage Sale Items

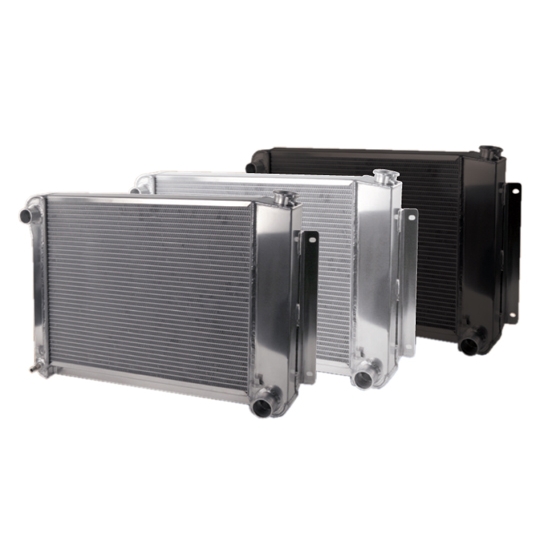

AFCO manufactures two different aluminum radiators for the '67-'69 Camaro/Firebird. The 10680250N and 10680251N are built with core widths of 20-7/8" and 23" respectively to match OEM specs. These radiators allow you to replace your original unit with an AFCO aluminum radiator and retain all of your existing hardware, including fan, shroud, regulator location, etc. - NO MODIFICATIONS ARE NECESSARY.

The smaller 26" wide radiator is ideal for a Small Block car with no A/C. If your car was equipped with the smaller 26" wide but you are running a high performance Small Block with air or a Big Block with air, your cooling answer is the 28" wide radiator.

  • 100% aluminum construction
  • Furnace brazed core - 2 rows of 1" tubes
  • Tanks are made of .080” aluminum for strength and durability
  • TIG welded by skilled craftsmen in the USA
  • Factory pressure-tested
  • Billet filler necks feature screw-in bleed – won't crack or leak with age
  • OEM size inlets/outlets & petcocks
  • Auto trans fittings in factory location



Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
