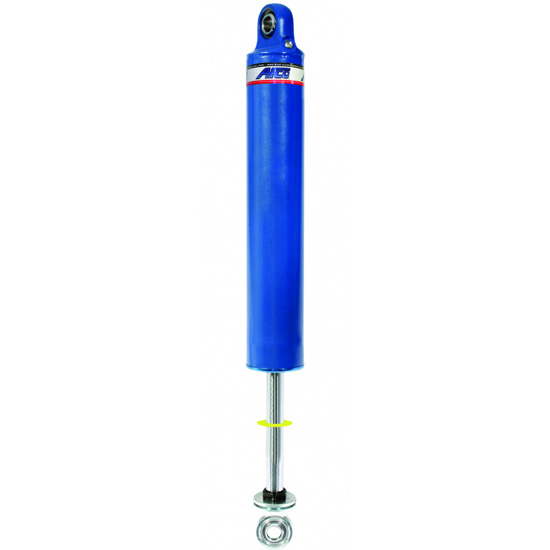

AFCO 2479-1 24 Series Steel Body Gas Shock-7 Inch Stroke, Comp 9/Reb 1
AFCO 2479-1 24 Series Steel Body Gas Shock-7 Inch Stroke, Comp 9/Reb 1

AFCO 2479-1 24 Series Steel Body Gas Shock-7 Inch Stroke, Comp 9/Reb 1

Modified, Sport Mod, Stock Car, Mono Tube Shock Type, Steel Shock Body Material, Powder Coated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 2479-1 24 Series Steel Body Gas Shock-7 Inch Stroke, Comp 9/Reb 1
AFCO 2479-1 24 Series Steel Body Gas Shock-7 Inch Stroke, Comp 9/Reb 1
Zoomed In Image
We estimate this item will ship on or before December 7th.
Part # 10624791
Save 14%
$149.99
$174.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 12 business days for AFCO to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Shock Type:
Mono Tube
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Shock Stroke Range:
7.00" to 7.99"
Shock Stroke:
7.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
19.85"
Compressed Length:
12.95"
Extended Length Range:
19.00" to 19.99"
Compressed Length Range:
12.00" to 12.99"
Compression Valving:
9
Rebound Valving:
1
Schrader Valve:
No
Finish:
Powder Coated
Coil-Over Compatible:
Yes
Body Diameter:
2.00"
Valve Positions:
9 compression - 1 rebound
Bushing Material:
Steel
MFG. Part #:
2479-1
Sold in Quantity:
Each
Notes:
IMCA legal
Inside Diameter:
46 mm
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No
Gas Charged:
Yes

Info

Speedway Motors is proud to be the first to announce the release of AFCO's newly designed IMCA approved steel body gas shocks. These new shocks have all the sophistication of our deflective disc technology wrapped up in an economical & rule friendly, non-adjustable package. These are sure to be the answer for any racer under constraints to experience gas shocks.

The new Steel Body 24 Series Gas Shock uses a Floating Piston Design. They are rebuildable and serviceable through an authorized Afco shock rebuild center, and are available in straight or split valve codes. Coil-over and non coil-over compatible.

The choice is clear, let the new AFCO Steel Mono-Tube Gas Shocks handle your car all the way to victory lane!

Some parts are not legal for use in California or other states with similar laws/regulations
