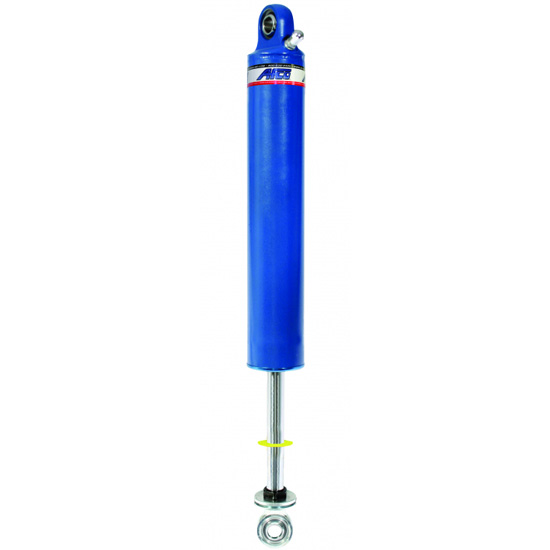

AFCO 2374-5D 23 Series Gas Shock w/ Schrader Valve, LF, Comp 4/Reb 5
AFCO 2374-5D 23 Series Gas Shock w/ Schrader Valve, LF, Comp 4/Reb 5

AFCO 2374-5D 23 Series Gas Shock w/ Schrader Valve, LF, Comp 4/Reb 5

Modified, Stock Car, Mono Tube Shock Type, Non-Adjustable Shock Adjustability, Powder Coated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 2374-5D 23 Series Gas Shock w/ Schrader Valve, LF, Comp 4/Reb 5
AFCO 2374-5D 23 Series Gas Shock w/ Schrader Valve, LF, Comp 4/Reb 5
Zoomed In Image
We estimate this item will ship on or before December 13th.
Part # 10623745D
Save 14%
$149.99
$174.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 0 business days for AFCO to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Shock Type:
Mono Tube
Shock Adjustability:
Non-Adjustable
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Shock Stroke Range:
7.00" to 7.99"
Shock Stroke:
7.00
Position:
Front Left
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
19.85"
Compressed Length:
12.95"
Extended Length Range:
19.00" to 19.99"
Compressed Length Range:
12.00" to 12.99"
Compression Valving:
4
Rebound Valving:
5
Schrader Valve:
Yes
Finish:
Powder Coated
Coil-Over Compatible:
Yes
Body Diameter:
2.00"
Valve Positions:
4 compression - 5 rebound
Bushing Material:
Steel
Rebuildable:
Yes
MFG. Part #:
2374-5D
Sold in Quantity:
Each
Inside Diameter:
46 mm
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No
Gas Charged:
Yes

Info

AFCO's mono-tube steel body gas 7 inch shocks have all the sophistication of deflective disc technology wrapped up in an economical & rules friendly, non-adjustable package. The 23 Series uses a floating piston design equipped with a Schrader valve to allow you to quickly vary the shock's gas pressure according to track conditions. These are sure to be the answer for any racer under constraints to experience gas shocks.

  • Schrader valve allows tuning with gas pressure
  • 7 Inch
  • Performance at its best on fast or rough tracks
  • Owner rebuildable and serviceable
  • Not coil-over compatible

Specs


Some parts are not legal for use in California or other states with similar laws/regulations
