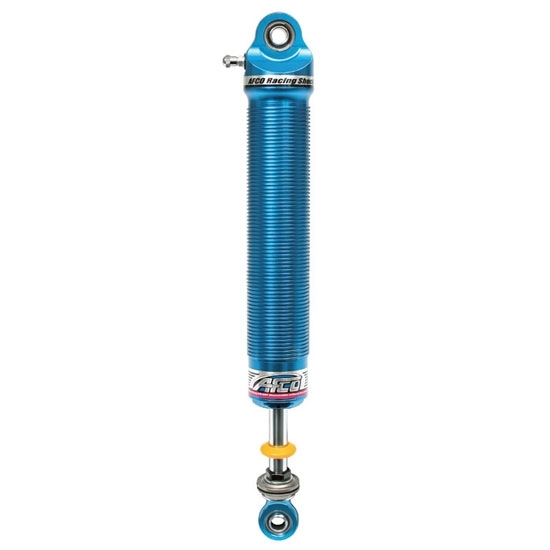

AFCO 2196-2D 21 Series Large Body Threaded Shock-9 Inch, LH, 6-2
AFCO 2196-2D 21 Series Large Body Threaded Shock-9 Inch, LH, 6-2

AFCO 2196-2D 21 Series Large Body Threaded Shock-9 Inch, LH, 6-2

Dirt Late Model, Pavement Late Model, Sprint Car, Mono Tube Shock Type, 6 Compression Valving

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 2196-2D 21 Series Large Body Threaded Shock-9 Inch, LH, 6-2
AFCO 2196-2D 21 Series Large Body Threaded Shock-9 Inch, LH, 6-2
Zoomed In Image
Part # UP98557
Save 11%
$159.99
$179.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Shock Type:
Mono Tube
Shock Adjustability:
Non-Adjustable
Shock Body Material:
Aluminum
Shock Body Size:
Large Body
Shock Body Type:
Threaded
Shock Stroke Range:
9.00" to 9.99"
Shock Stroke:
9.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
24.25"
Compressed Length:
16.25"
Extended Length Range:
24.00" to 24.99"
Compressed Length Range:
16.00" to 16.99"
Compression Valving:
6
Rebound Valving:
2
Schrader Valve:
Yes
Finish:
Anodized
Coil-Over Compatible:
Yes
Rebuildable:
Yes
MFG. Part #:
2196-2D
Sold in Quantity:
Each

Info

This is Garage Sale priced because it is an open box item.

AFCOs 21 Series aluminum body fixed valve gas pressure shocks feature deflective disc technology in an economical, rules-friendly, non-adjustable package. These lightweight aluminum shocks are sure to be the answer for any racer under constraints to experience the superb handling of gas-charged shocks.

  • Fixed valving in a gas pressure design
  • Threaded for coil-over applications
  • User serviceable/repairable
  • Late Model/Crate Late Model application (left side)

Late Model 4-Link Gas Shock Chart (Link)

Item Details

Compressed Length: 15.53"Extended Length: 24.47"Comp./Rebound: 6/2

Application

  • Dirt Late Model/Crate Late Model
  • Recommended 4-Link Gas Shock
    • Left Rear Behind Shocks
      • Slick Track Condition

NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS



Some parts are not legal for use in California or other states with similar laws/regulations
